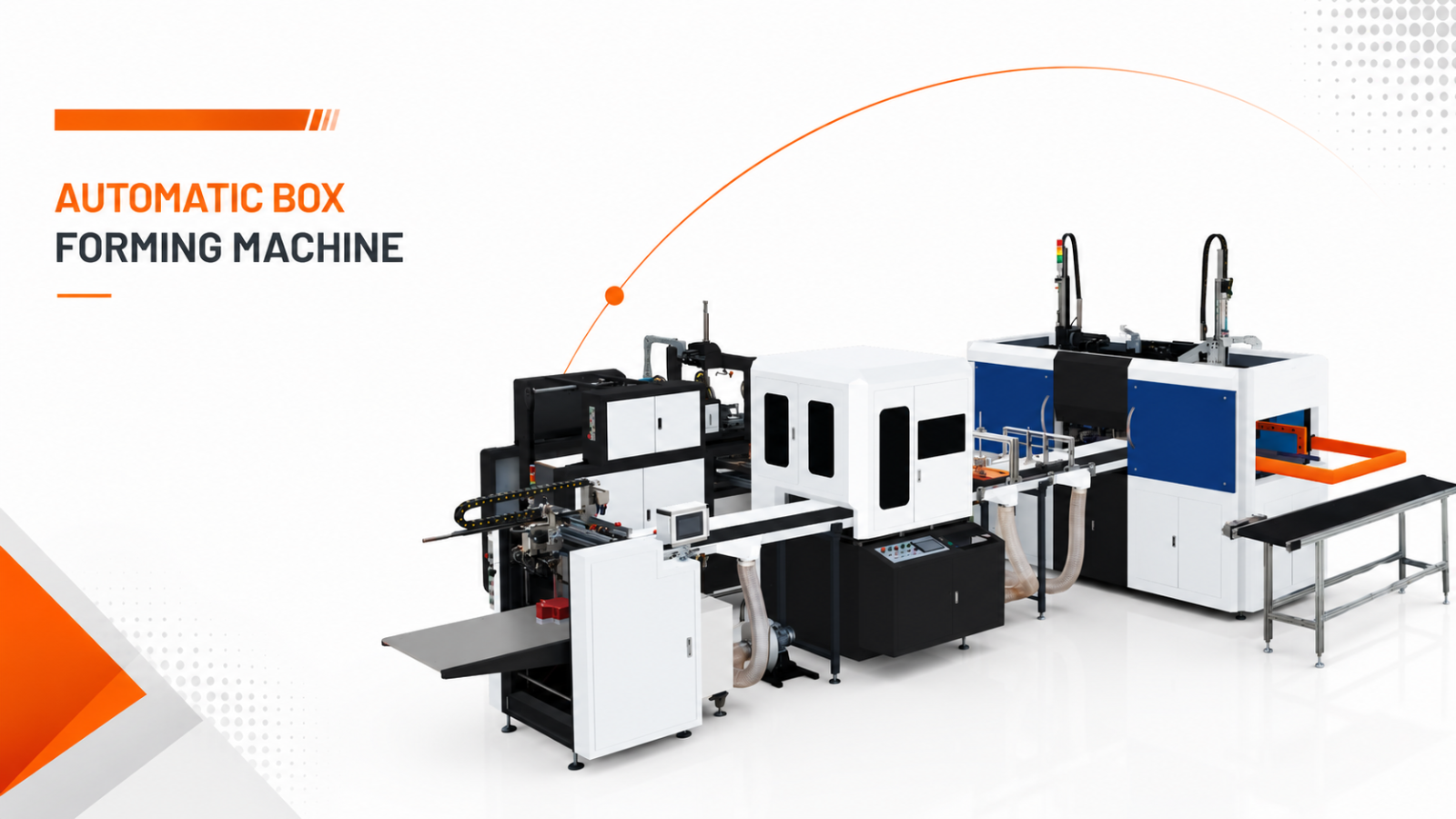

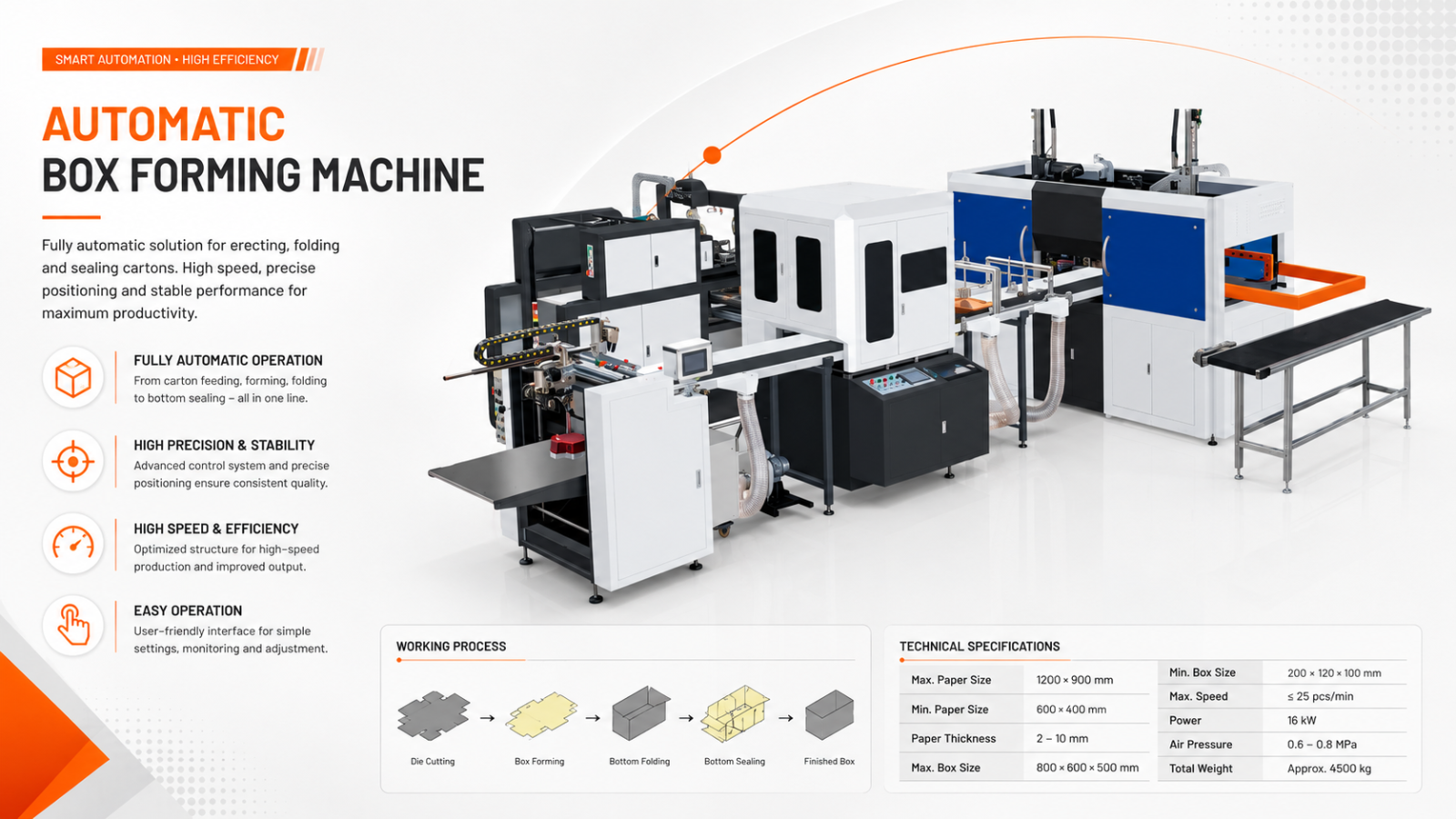

Automatic Box Forming Machine
High-Speed Intelligent Rigid Box Forming Solution
The Automatic Box Forming Machine is a high-speed fully automated rigid box forming solution designed for premium packaging production and luxury rigid box manufacturing industries. Moreover, this intelligent box forming machine delivers precise box alignment, stable industrial operation, and highly efficient production performance for modern packaging applications.
Additionally, the machine is equipped with advanced positioning technology, intelligent automation systems, and Yamaha visual positioning mechanisms to ensure highly accurate box forming with ±0.1mm positioning precision. As a result, manufacturers can achieve superior packaging consistency, reduced production errors, and high-speed rigid box production efficiency.
The LZ-3040B integrates automatic paper feeding, automatic gluing, gray board feeding, corner pasting, and box forming into one fully automated workflow. Furthermore, its PLC programmable control system with intelligent touch screen interface provides easy machine operation, stable automation performance, and fast production adjustment.
Its heavy-duty industrial structure, automatic bubble pressing system, and automatic edge folding technology improve finished product quality while ensuring stable long-term industrial operation for premium packaging production environments.
Therefore, the LZ-3040B Automatic Box Forming Machine is considered an ideal rigid box manufacturing solution for businesses seeking intelligent automatic box forming systems with high-speed industrial production capability.
Key Features
- Fully automatic rigid box forming system for continuous production
- PLC programmable control system with intelligent touch screen interface
- Robot and camera visual positioning system with ±0.1mm accuracy
- Automatic paper feeding, gluing, and gray board feeding system
- Automatic corner pasting and box forming completed in one process
- High-speed production capability for improved manufacturing efficiency
- Stable and reliable heavy-duty industrial machine structure
- Automatic bubble pressing and edge folding technology
- Fault detection, alarm display, and safety protection system
- Available in single forming and double forming configurations
- Suitable for luxury rigid boxes and premium packaging products
- Intelligent automation workflow for stable production operation
- Accurate box alignment with visual positioning technology
- Reduces labor dependency and production downtime
- Improves rigid box production quality and efficiency
Technical Specifications
LZ-3040B
- Maximum Box Size: 350 × 450 × 120 mm
- Minimum Box Size: 50 × 70 × 10 mm
- Alignment Accuracy: ±0.1 mm
- Production Speed (Single Forming): 25–35 pcs/min
- Production Speed (Double Forming): 40–60 pcs/min
- Power Supply: 380V / 220V 50Hz
- Total Power (Single Forming): 12Kw
- Total Power (Double Forming): 13Kw
- Air Pressure: 0.4–0.6Mpa
- Machine Dimension (Single Forming): 6500 × 3500 × 3000 mm
- Machine Dimension (Double Forming): 6500 × 4500 × 3000 mm
- Machine Weight (Single Forming): 3500Kg
- Machine Weight (Double Forming): 4500Kg
Additionally, the machine is equipped with advanced robot and camera visual positioning systems to ensure accurate rigid box forming performance and stable industrial production operation.
Applications
The LZ-3040B Automatic Box Forming Machine is widely used for manufacturing:
- Luxury rigid gift boxes
- Shoe boxes
- Jewelry packaging boxes
- Electronics packaging boxes
- Mobile phone packaging boxes
- Premium cosmetic boxes
- Watch boxes
- Chocolate and confectionery boxes
- High-end presentation packaging
- Top and bottom rigid boxes
- Premium retail packaging
- Luxury rigid packaging products
Furthermore, the machine helps manufacturers improve production efficiency, increase forming precision, and achieve superior rigid box consistency in premium packaging production environments.
Model Comparison
| Specifications | LZ-3040A | LZ-3040B |
|---|---|---|
| Machine Type | Double Intelligent Double Vision Forming Machine | Automatic Box Forming Machine |
| Production Type | Bottom Box + Cover Box | Single / Double Forming |
| Maximum Box Size | 350 × 450 × 120mm | 350 × 450 × 120mm |
| Minimum Box Size | 50 × 70 × 10mm | 50 × 70 × 10mm |
| Position Accuracy | ±0.1mm | ±0.1mm |
| Production Speed | 25–35 pairs/min | 25–60 pcs/min |
| Power Consumption | 28Kw | 12–13Kw |
| Air Pressure | 0.4–0.6Mpa | 0.4–0.6Mpa |
| Machine Weight | 6500Kg | 3500–4500Kg |
| Main Advantage | Dual feeder & dual vision production | Flexible single/double forming production |
| Suitable For | Simultaneous lid & bottom box production | High-speed rigid box manufacturing |
Comparison Summary
- LZ-3040A is designed for simultaneous bottom and cover box production
- LZ-3040B focuses on flexible single and double rigid box forming applications
- LZ-3040B provides high-speed rigid box manufacturing performance
- LZ-3040A offers integrated dual feeder and dual vision production workflow
- Both machines provide ±0.1mm positioning precision and intelligent automation systems
- Suitable for luxury packaging and premium rigid box production industries
Why Choose the LZ-3040B Automatic Box Forming Machine?
The LZ-3040B provides an efficient and reliable solution for automatic rigid box forming and premium packaging production operations. Moreover, the machine combines intelligent automation systems, Yamaha visual positioning technology, and stable industrial construction to ensure accurate and continuous production performance.
Additionally, the machine helps manufacturers improve packaging quality, reduce labor costs, minimize production errors, and achieve superior rigid box consistency. Therefore, it is an ideal automatic forming solution for luxury packaging manufacturers, rigid box production facilities, and premium retail packaging industries.
For advanced rigid box machinery and industrial packaging automation solutions, visit Corrumatik.
Frequently Asked Questions
What is the LZ-3040B Automatic Box Forming Machine used for?
The machine is used for automatic rigid box forming applications in luxury packaging and premium rigid box manufacturing industries.
Which packaging products are supported?
The machine supports rigid gift boxes, shoe boxes, jewelry boxes, cosmetic packaging boxes, mobile phone boxes, presentation boxes, and premium retail packaging products.
Which industries use this machine?
It is widely used in luxury packaging, rigid box manufacturing, electronics packaging, cosmetic packaging, jewelry packaging, and premium gift box production industries.
What are the advantages of an automatic box forming machine?
Automatic box forming machines improve production efficiency, increase positioning precision, reduce labor dependency, and deliver stable high-speed rigid box forming performance.
