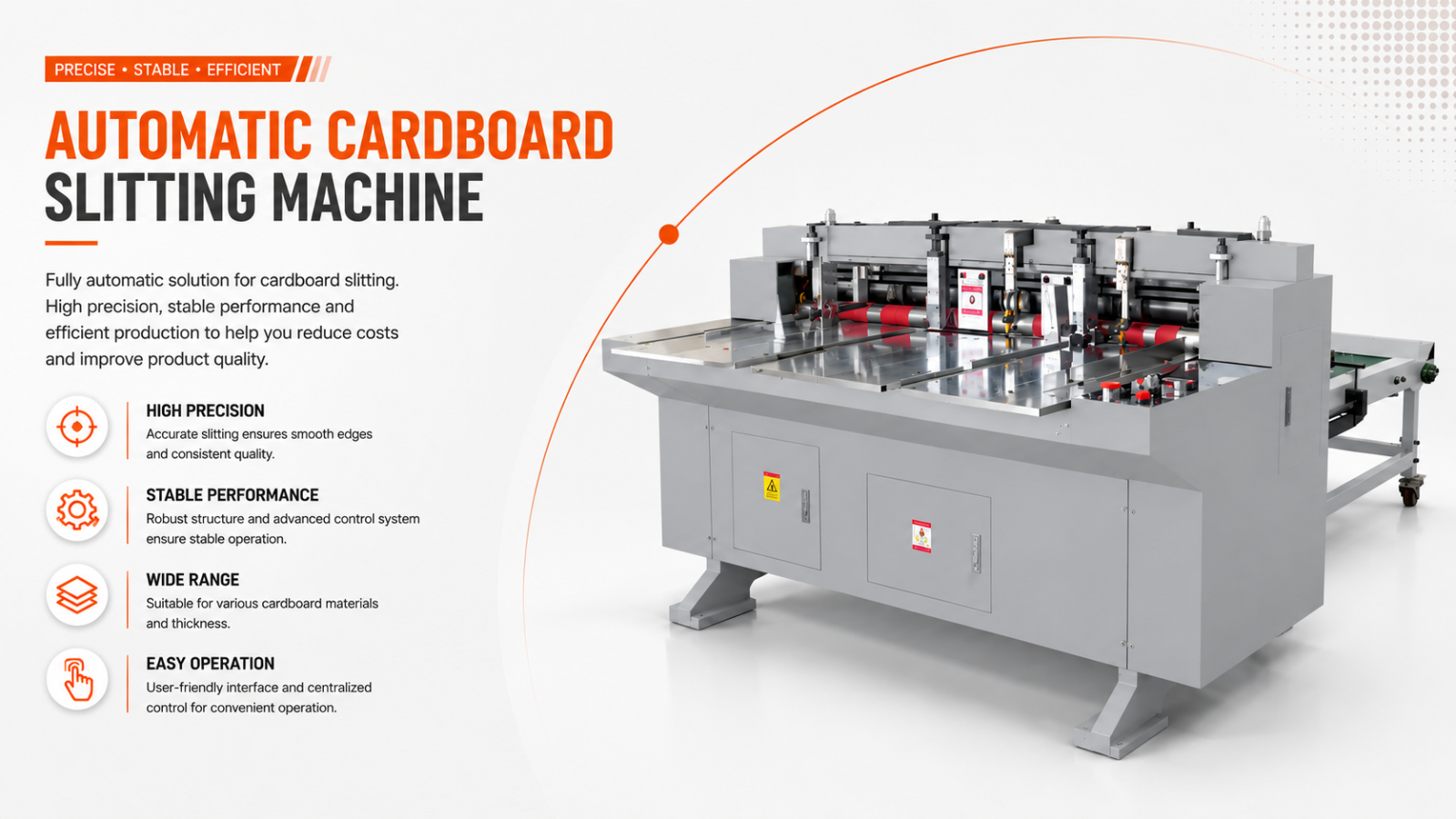

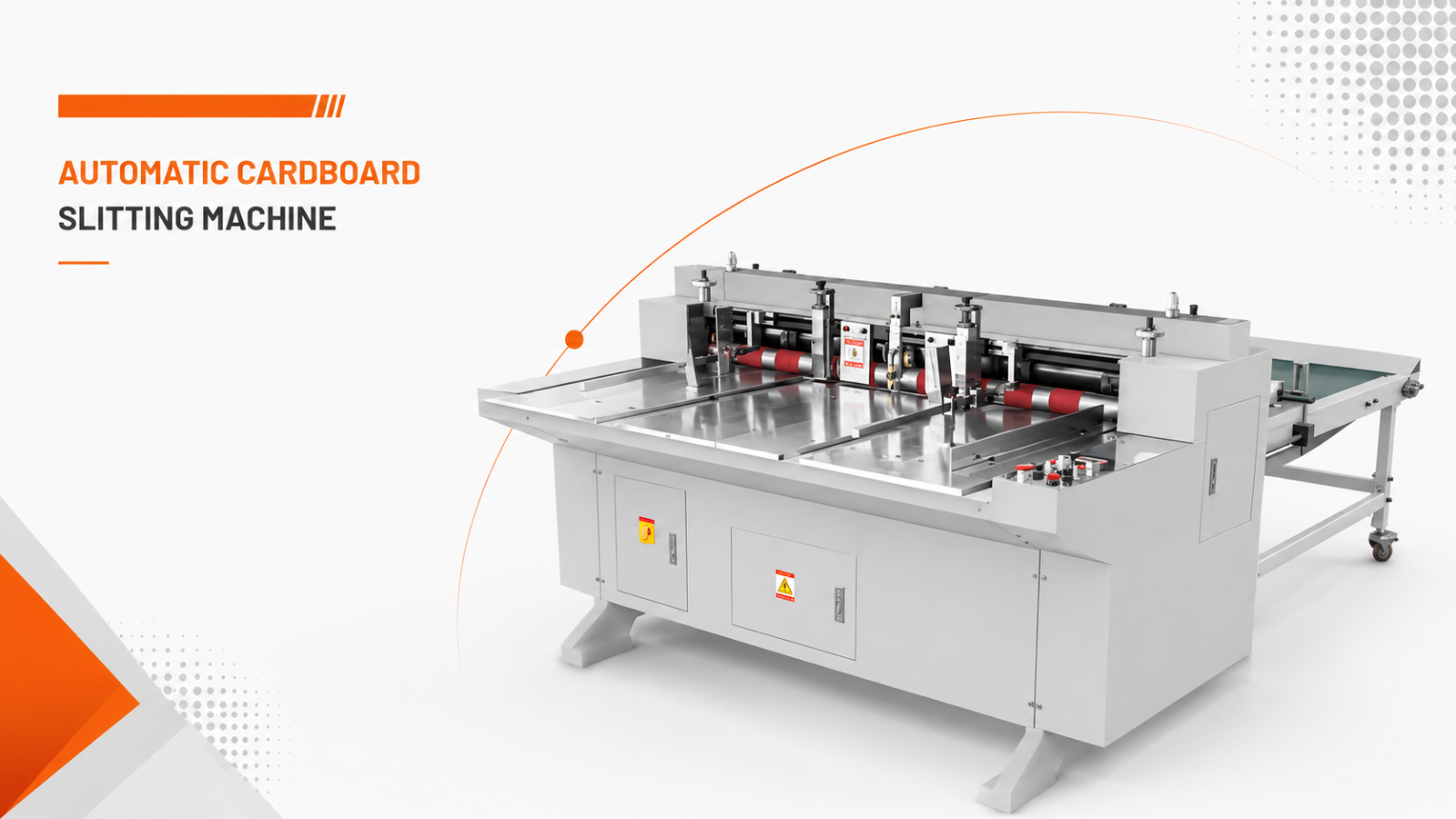

Automatic Cardboard Slitting Machine
High-Speed Precision Cardboard Slitting Solution
The Automatic Cardboard Slitting Machine is a high-speed precision cardboard cutting solution developed for rigid box manufacturing and luxury packaging production industries. Moreover, this advanced cardboard slitting machine delivers accurate board cutting, stable operation, and high production efficiency for modern rigid packaging applications.
Additionally, the machine is specially designed for slitting gray board, industrial cardboard, and rigid packaging boards used in premium gift boxes, hardcover products, mobile phone boxes, and rigid setup boxes. As a result, manufacturers can achieve improved board preparation accuracy, higher cutting precision, and superior packaging production efficiency.
The machine adopts advanced frequency conversion speed regulation technology, centralized lubrication systems, and rotary knife cutting mechanisms to ensure stable industrial operation and long-term reliability. Furthermore, the heavy-duty cast iron structure improves operational stability while pneumatic pressure adjustment allows fast adaptation for different cardboard thicknesses.
Its user-friendly operating system, stable feeding performance, and high-speed slitting capability make it suitable for rigid box manufacturers, hardcover production facilities, and premium packaging industries requiring continuous industrial production.
Therefore, the LZ-1300 / LZ-1500 Automatic Cardboard Slitting Machine is considered an ideal board preparation solution for rigid box production and luxury packaging manufacturing applications.
Key Features
- High-speed automatic cardboard slitting system
- Suitable for gray board, industrial cardboard, and rigid packaging boards
- Frequency conversion speed control ensures smooth operation
- Rotary knife cutting technology for accurate slitting performance
- Pneumatic pressure adjustment supports different board thicknesses
- Heavy-duty cast iron machine body for operational stability
- Easy knife adjustment and maintenance
- Stable feeding and cutting performance for continuous production
- User-friendly operation with fast setup adjustment
- Ideal for rigid box, hardcover, and luxury packaging production
- High cutting efficiency with stable slitting precision
- Durable industrial structure for long-term operation
- Reduces production errors and material wastage
- Suitable for medium and high-volume packaging production
- Improves board preparation efficiency and cutting quality
Technical Specifications
LZ-1300
- Machine Speed: 20–140 sheets/min
- Maximum Cardboard Size: 1200 × 800mm
- Minimum Cardboard Size: 47 × 210mm
- Cardboard Thickness: 1.2–3mm
- Maximum Feeding Height: 225mm
- Power Supply: 380V/220V 50Hz
- Total Power: 2.2Kw
- Slitting Number: 8 pcs
- Machine Weight: 1900Kg
- Machine Dimension: 1755 × 1050 × 1100mm
LZ-1500
- Machine Speed: 20–140 sheets/min
- Maximum Cardboard Size: 1450 × 800mm
- Minimum Cardboard Size: 47 × 210mm
- Cardboard Thickness: 1.2–3mm
- Maximum Feeding Height: 225mm
- Power Supply: 380V/220V 50Hz
- Total Power: 2.2Kw
- Slitting Number: 8 pcs
- Machine Weight: 2000Kg
- Machine Dimension: 1955 × 1350 × 1100mm
Additionally, the machine is equipped with precision rotary knife systems and stable feeding technology to ensure accurate slitting performance and continuous industrial production operation.
Applications
The LZ-1300 / LZ-1500 Automatic Cardboard Slitting Machine is widely used for manufacturing:
- Luxury rigid gift boxes
- Hardcover book boards
- Mobile phone boxes
- Jewelry boxes
- Wine boxes
- Tea packaging boxes
- Shoe boxes
- Electronics packaging boxes
- Premium setup boxes
- Rigid cardboard packaging products
- Premium retail packaging
- Hardcover packaging materials
Furthermore, the machine helps manufacturers improve cutting precision, reduce production downtime, and achieve superior board preparation efficiency in rigid packaging production environments.
Model Comparison
| Specifications | LZ-1300 | LZ-1500 | KC-1500 |
|---|---|---|---|
| Machine Type | Automatic Cardboard Slitting Machine | Automatic Cardboard Slitting Machine | Automatic Grooving Machine |
| Main Function | Cardboard Slitting | Cardboard Slitting | V-Grooving |
| Maximum Board Width | 1200×800mm | 1450×800mm | 1300mm |
| Minimum Board Size | 47×210mm | 47×210mm | 100mm |
| Board Thickness | 1.2–3mm | 1.2–3mm | 0.5–4mm |
| Working Speed | 20–140 sheets/min | 20–140 sheets/min | 0–40m/min |
| Slitting / Grooving Capacity | 8 Slitting Lines | 8 Slitting Lines | Adjustable Grooving |
| Power Supply | 380V/220V 50Hz | 380V/220V 50Hz | 380V/220V 50Hz |
| Total Power | 2.2Kw | 2.2Kw | 3.7Kw |
| Machine Weight | 1900Kg | 2000Kg | 1700Kg |
| Main Advantage | High-Speed Precision Slitting | Large Board Slitting Capacity | Precision V-Grooving |
| Best Suitable For | Medium rigid box production | Large rigid box production | Premium rigid box grooving |
Comparison Summary
- LZ-1300 is suitable for medium-scale rigid box manufacturers requiring fast and accurate cardboard slitting
- LZ-1500 supports larger cardboard sizes and is suitable for high-volume production facilities
- KC-1500 is mainly used for V-grooving operations before box folding and forming processes
- LZ-series machines focus on board preparation efficiency
- KC-series machines specialize in precision grooving applications
- Both machines improve rigid packaging production quality and operational efficiency
Why Choose the LZ-1300 / LZ-1500 Automatic Cardboard Slitting Machine?
The LZ-series provides an efficient and reliable solution for high-speed cardboard slitting and rigid board preparation operations. Moreover, the machine combines stable industrial construction, accurate rotary knife cutting systems, and intelligent speed control technology to ensure precise and continuous production performance.
Additionally, the machine helps manufacturers improve production efficiency, reduce material wastage, minimize operational downtime, and achieve superior board cutting consistency. Therefore, it is an ideal cardboard slitting solution for rigid box manufacturers, luxury packaging industries, and hardcover production facilities.
For advanced rigid box machinery and industrial packaging automation solutions, visit https://corrumatik.com
Frequently Asked Questions
What is the LZ-1300 / LZ-1500 Automatic Cardboard Slitting Machine used for?
The machine is used for high-speed cardboard slitting and rigid board preparation applications in rigid box manufacturing and luxury packaging industries.
Which materials are supported?
The machine supports gray board, industrial cardboard, and rigid packaging boards with thicknesses ranging from 1.2–3mm.
Which industries use this machine?
It is widely used in rigid box manufacturing, hardcover production, luxury packaging, premium gift box production, and electronics packaging industries.
What are the advantages of an automatic cardboard slitting machine?
Automatic cardboard slitting machines improve cutting precision, increase production efficiency, reduce material waste, and deliver stable high-speed board preparation performance.
