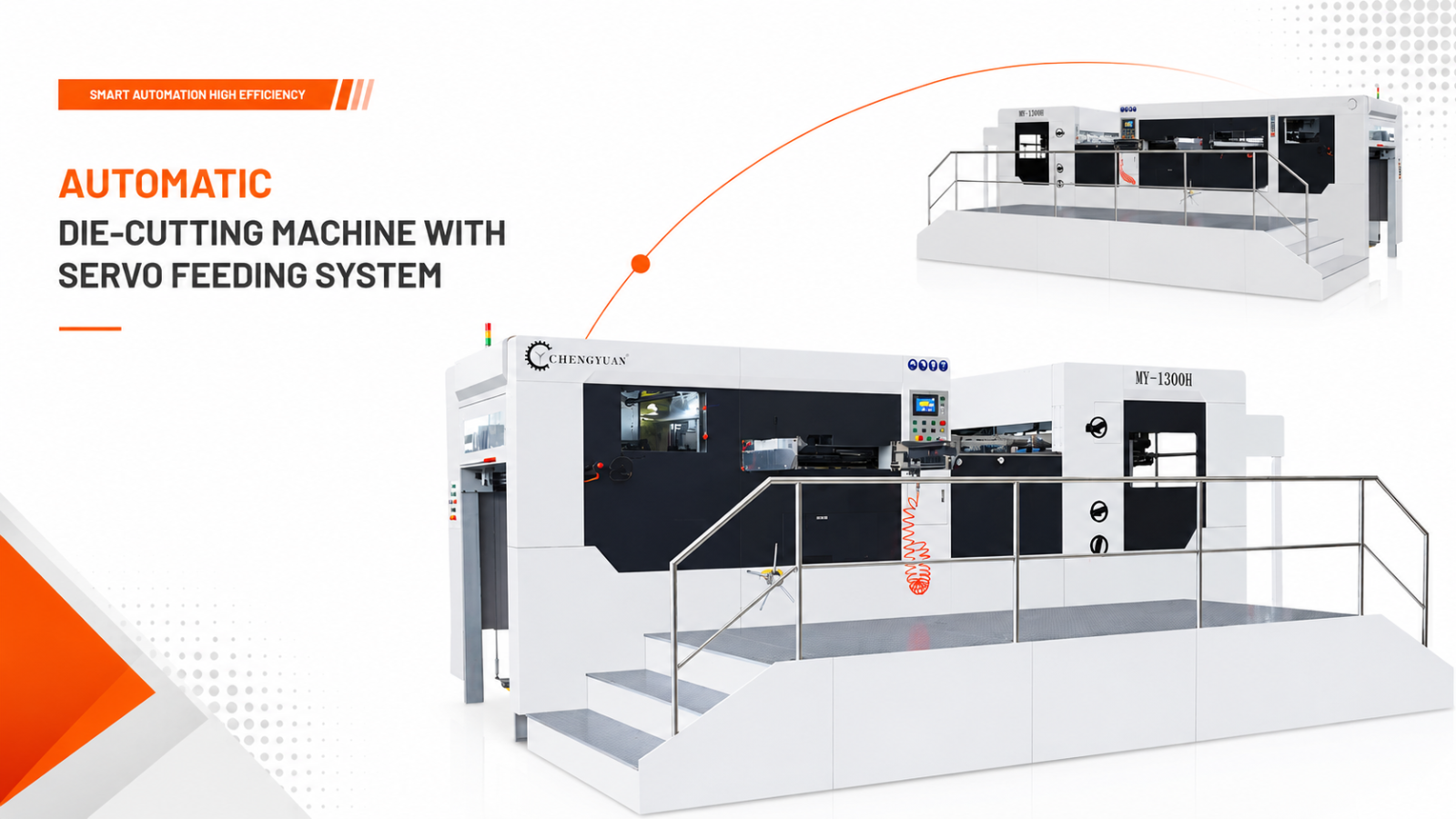

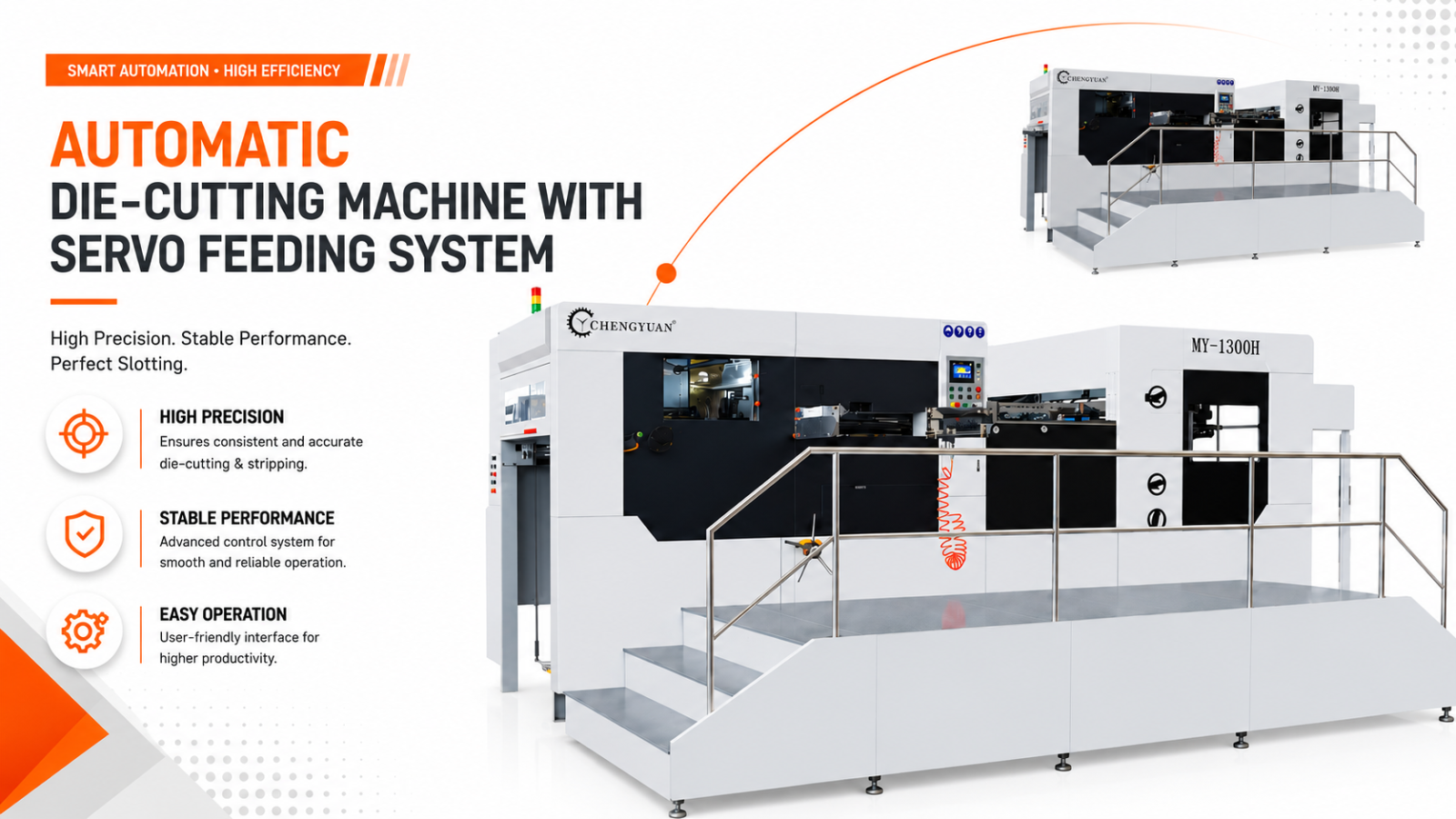

Automatic Die-Cutting Machine with Servo Feeding System
High-Speed Automatic Die Cutting Solution with Servo Feeding Technology
The Automatic Die-Cutting Machine with Servo Feeding System is a high-performance industrial die-cutting solution engineered for precision carton converting, corrugated board processing, embossing, creasing, and large-format packaging production. Moreover, this servo feeding die cutting machine delivers exceptional feeding accuracy, stable high-speed operation, and superior die-cutting precision for modern packaging industries.
Additionally, the MY Series Servo Feeding Die-Cutting Machines are specially developed for high-grade color cartons, corrugated packaging boxes, laminated boards, paperboard products, and industrial packaging materials. As a result, manufacturers can achieve improved production efficiency, accurate sheet alignment, and stable high-volume industrial production performance.
The machine adopts advanced dual-servo feeding control technology, high-strength gripper bars, intelligent positioning systems, and precision intermittent mechanisms to ensure smooth paper transportation and highly accurate die-cutting performance even during continuous high-speed operation. Furthermore, the intelligent servo feeding system minimizes sheet deviation while improving corrugated board handling performance.
Its PLC intelligent automation system, human-machine interface operation, variable frequency motor control, pneumatic locking systems, and multiple safety sensors provide stable, safe, and efficient industrial operation. Additionally, the front and rear die-cutting pressure can be adjusted independently, while the optional no-gripper-margin function helps improve material utilization and reduce production waste.
With maximum operating speeds up to 6000 sheets per hour and support for thick corrugated boards up to 8 mm, the MY-1300H / MY-1500H / MY-1700H series has become an ideal die-cutting solution for large-format carton packaging manufacturers and industrial printing operations.
Key Features
- Advanced servo feeding system technology
- High-speed automatic die-cutting operation
- Dual-servo control for stable paper feeding
- High-precision intermittent mechanism
- Heavy-duty industrial machine structure
- PLC intelligent automation control
- Human-machine interface touchscreen system
- Variable frequency motor speed adjustment
- Pneumatic locking plate mechanism
- Independent front and rear pressure adjustment
- High-strength gripper bar system
- Front, side, and rear positioning systems
- Supports cardboard and corrugated boards up to 8 mm
- Optional no-gripper-margin die-cutting function
- Stable operation at high production speeds
- Multiple safety sensors and protection systems
- Suitable for large-format packaging production
- High feeding accuracy for corrugated sheets
- Smooth continuous industrial production performance
- Designed for premium carton and packaging industries
- High-speed carton converting capability
- Stable embossing and creasing performance
- Precision die-cutting for corrugated packaging
- Reliable heavy-duty industrial construction
- Improves production efficiency and material utilization
Technical Specifications
MY-1300H
- Maximum Paper Size: 1320 × 970 mm
- Minimum Paper Size: 500 × 400 mm
- Maximum Die Cutting Size: 1310 × 950 mm
- Maximum Die Cutting Pressure: 300N/cm²
- Cardboard Range: 120–2000 g/m²
- Corrugated Board Thickness: Up to 8 mm
- Maximum Die Cutting Speed: 6000 sheets/hour
- Maximum Feeding Pile Height: 1600 mm
- Maximum Delivery Pile Height: 1400 mm
- Total Power: 17 kW
- Total Weight: 17T
- Machine Dimensions: 6600 × 4500 × 3300 mm
MY-1500H
- Maximum Paper Size: 1520 × 1100 mm
- Minimum Paper Size: 500 × 420 mm
- Maximum Die Cutting Size: 1510 × 1090 mm
- Maximum Die Cutting Pressure: 300N/cm²
- Cardboard Range: 120–2000 g/m²
- Corrugated Board Thickness: Up to 8 mm
- Maximum Die Cutting Speed: 6000 sheets/hour
- Maximum Feeding Pile Height: 1700 mm
- Maximum Delivery Pile Height: 1500 mm
- Total Power: 24 kW
- Total Weight: 20T
- Machine Dimensions: 7000 × 4700 × 3300 mm
MY-1700H
- Maximum Paper Size: 1720 × 1260 mm
- Minimum Paper Size: 600 × 600 mm
- Maximum Die Cutting Size: 1710 × 1250 mm
- Maximum Die Cutting Pressure: 300N/cm²
- Cardboard Range: 120–2000 g/m²
- Corrugated Board Thickness: Up to 8 mm
- Maximum Die Cutting Speed: 5500 sheets/hour
- Maximum Feeding Pile Height: 1750 mm
- Maximum Delivery Pile Height: 1600 mm
- Total Power: 28 kW
- Total Weight: 24T
- Machine Dimensions: 7300 × 5000 × 3300 mm
Additionally, the machine is equipped with intelligent servo feeding systems and precision die-cutting mechanisms to ensure stable high-speed operation and accurate corrugated packaging production performance.
Applications
The MY-1300H / MY-1500H / MY-1700H Servo Feeding Die Cutting Machine is widely used for:
- Large-format carton die-cutting
- Corrugated box manufacturing
- Packaging box production
- Folding carton processing
- Industrial paperboard converting
- Corrugated packaging industries
- Heavy-duty carton production
- Embossing and creasing operations
- Commercial packaging printing
- Food packaging production
- Electronics packaging manufacturing
- Pharmaceutical carton processing
- Laminated corrugated board converting
- High-volume packaging operations
- Premium packaging applications
- Industrial printing and converting plants
Furthermore, the machine helps manufacturers improve die-cutting precision, increase production efficiency, and achieve superior corrugated packaging quality in industrial production environments.
Model Comparison
| Feature | MY-1300H | MY-1500H | MY-1700H | Recommended Alternative Model |
|---|---|---|---|---|
| Machine Type | Servo Feeding Die-Cutting Machine | Servo Feeding Die-Cutting Machine | Servo Feeding Die-Cutting Machine | MY-1700QP |
| Max Paper Size | 1320 × 970 mm | 1520 × 1100 mm | 1720 × 1260 mm | 1700 × 1200 mm |
| Max Die Cutting Size | 1310 × 950 mm | 1510 × 1090 mm | 1710 × 1250 mm | 1680 × 1180 mm |
| Max Speed | 6000 sheets/h | 6000 sheets/h | 5500 sheets/h | 5500 sheets/h |
| Max Pressure | 300N/cm² | 300N/cm² | 300N/cm² | 400N/m² |
| Corrugated Support | ≤ 8 mm | ≤ 8 mm | ≤ 8 mm | 1–8.5 mm flute board |
| Feeding Technology | Servo feeding | Servo feeding | Servo feeding | Lead edge feeding |
| Stripping Function | Optional | Optional | Optional | Full three-frame stripping |
| Total Power | 17 kW | 24 kW | 28 kW | 35 kW |
| Best For | Medium-large packaging | Heavy carton production | Large-format packaging | Full stripping corrugated production |
| Industry Use | Carton packaging | Corrugated packaging | Industrial packaging | High-speed stripping operations |
Why Choose the Servo Feeding Die Cutting Machine?
The MY Series provides an efficient and reliable solution for high-speed carton converting, corrugated board processing, and industrial die-cutting operations. Moreover, the machine combines intelligent servo automation, precision feeding technology, and heavy-duty industrial construction to ensure accurate and continuous production performance.
Additionally, the machine helps manufacturers improve die-cutting quality, reduce material waste, minimize labor dependency, and achieve superior packaging consistency. Therefore, it is an ideal die-cutting solution for corrugated carton manufacturers, industrial packaging facilities, and commercial printing industries.
For advanced corrugated packaging machinery and industrial automation solutions, visit Corrumatik.
Frequently Asked Questions
What is the Servo Feeding Die Cutting Machine used for?
The machine is used for corrugated board processing, carton converting, embossing, creasing, and large-format packaging production applications.
Which materials are supported?
The machine supports cardboard from 120–2000 g/m² and corrugated boards up to 8 mm thickness.
Which industries use this machine?
It is widely used in corrugated packaging, carton manufacturing, food packaging, pharmaceutical packaging, industrial printing, and commercial packaging industries.
What are the advantages of a servo feeding die cutting machine?
Servo feeding die cutting machines improve feeding accuracy, increase production efficiency, reduce material waste, and deliver stable high-speed industrial packaging performance.
