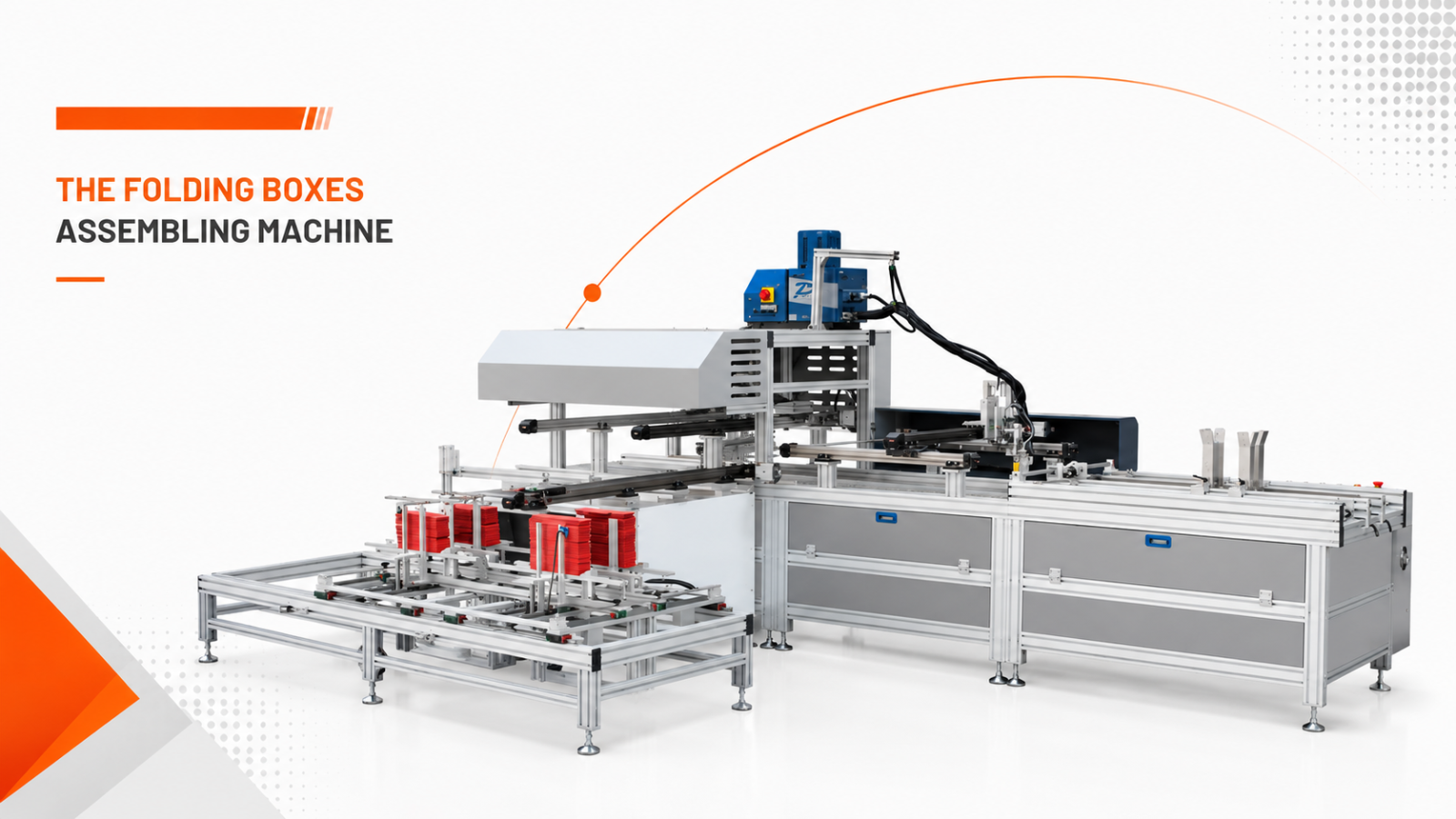

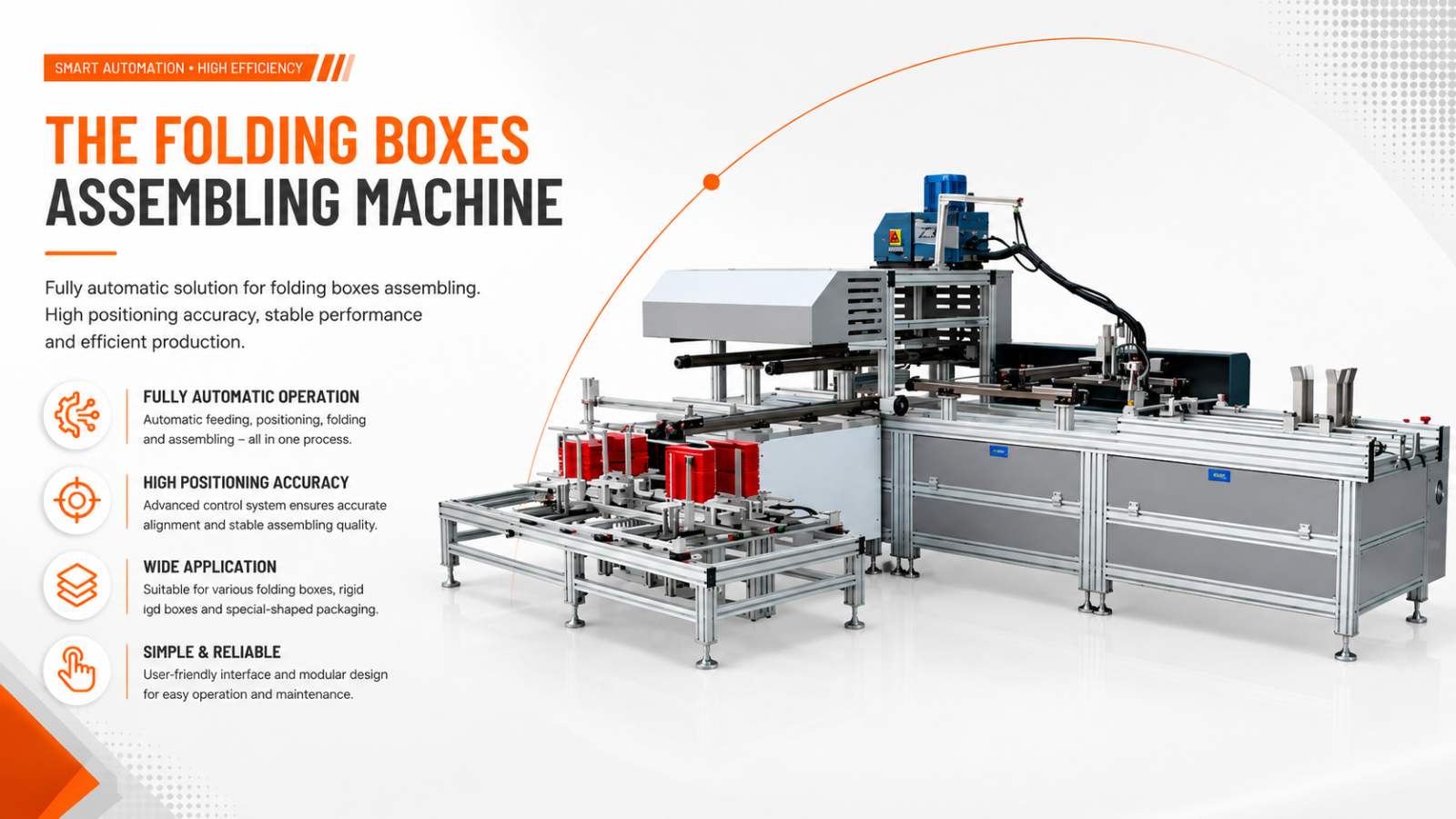

The Folding Boxes Assembling Machine is an advanced automatic assembling and forming system specially developed for folding box production. The machine is designed for economical operation, high positioning precision, and labor-saving performance, making it suitable for a wide range of folding box manufacturing applications.
With a positioning accuracy of ±0.1mm, the machine ensures precise assembly and stable production quality. It is capable of handling various folding box sizes while reducing manpower requirements by 3–5 operators. The machine is ideal for manufacturers looking for efficient and cost-effective folding box assembly solutions.
Key Features
- Automatic folding box assembling and forming system.
- High positioning accuracy of ±0.1mm.
- Economical and labor-saving design.
- Wide application range for different folding box types.
- Stable and efficient production workflow.
- User-friendly operation and easy setup.
- Suitable for medium and large folding boxes.
- Reduces manual labor by 3–5 operators.
- High-speed production with consistent quality.
- Heavy-duty industrial structure for long-term operation.
Technical Specifications
- Power Supply: 220V / 380V
- Air Pressure: 0.6–0.8Mpa
- Folding Box Max Hardcover Size: 900 × 700 mm
- Folding Box Min Hardcover Size: 300 × 130 mm
- Side Wing Length (Two Side Boards): 200–650 mm
- Side Wing Min Width: Minimum 50 mm
- Side Wing Center Min Width: Minimum 80 mm
- Production Speed: 15–20 pcs/min
- Position Accuracy: ±0.1mm
- Machine Dimension: 3000 × 4500 × 2100 mm
Applications
Suitable for manufacturing:
- Folding rigid boxes
- Foldable gift boxes
- Luxury packaging boxes
- Electronics packaging boxes
- Cosmetic packaging boxes
- Apparel packaging boxes
- Premium retail packaging
- Magnetic folding boxes
- Collapsible storage boxes
- High-end presentation boxes
Model Comparison
| Specifications |
LZ-1000 |
LZ-300 |
| Machine Type |
Folding Boxes Assembling Machine |
Folding Boxes Forming Machine |
| Main Function |
Folding box assembling & forming |
Automatic folding box forming |
| Position Accuracy |
±0.1mm |
±0.1mm |
| Production Speed |
15–20 pcs/min |
15–20 pcs/min |
| Max Product Size |
900×700 mm |
— |
| Min Product Size |
300×130 mm |
— |
| Side Wing Length |
200–650 mm |
200–650 mm |
| Side Wing Width |
Min 50 mm |
50–150 mm |
| Power Supply |
220V / 380V |
220V / 380V |
| Air Pressure |
0.6–0.8Mpa |
0.6–0.8Mpa |
| Machine Dimension |
3000×4500×2100 mm |
2600×5400×2000 mm |
| Best Suitable For |
Folding box assembly production |
Fully automatic folding box forming |
Comparison Summary
- LZ-1000 is mainly designed for folding box assembling and forming with a larger hardcover size capacity.
- LZ-300 focuses on fully automatic folding box forming with Yamaha visual positioning technology.
- Both machines offer ±0.1mm positioning accuracy and similar production speeds.
- LZ-1000 is more economical and suitable for flexible assembly applications, while LZ-300 provides a more integrated automatic forming workflow.
