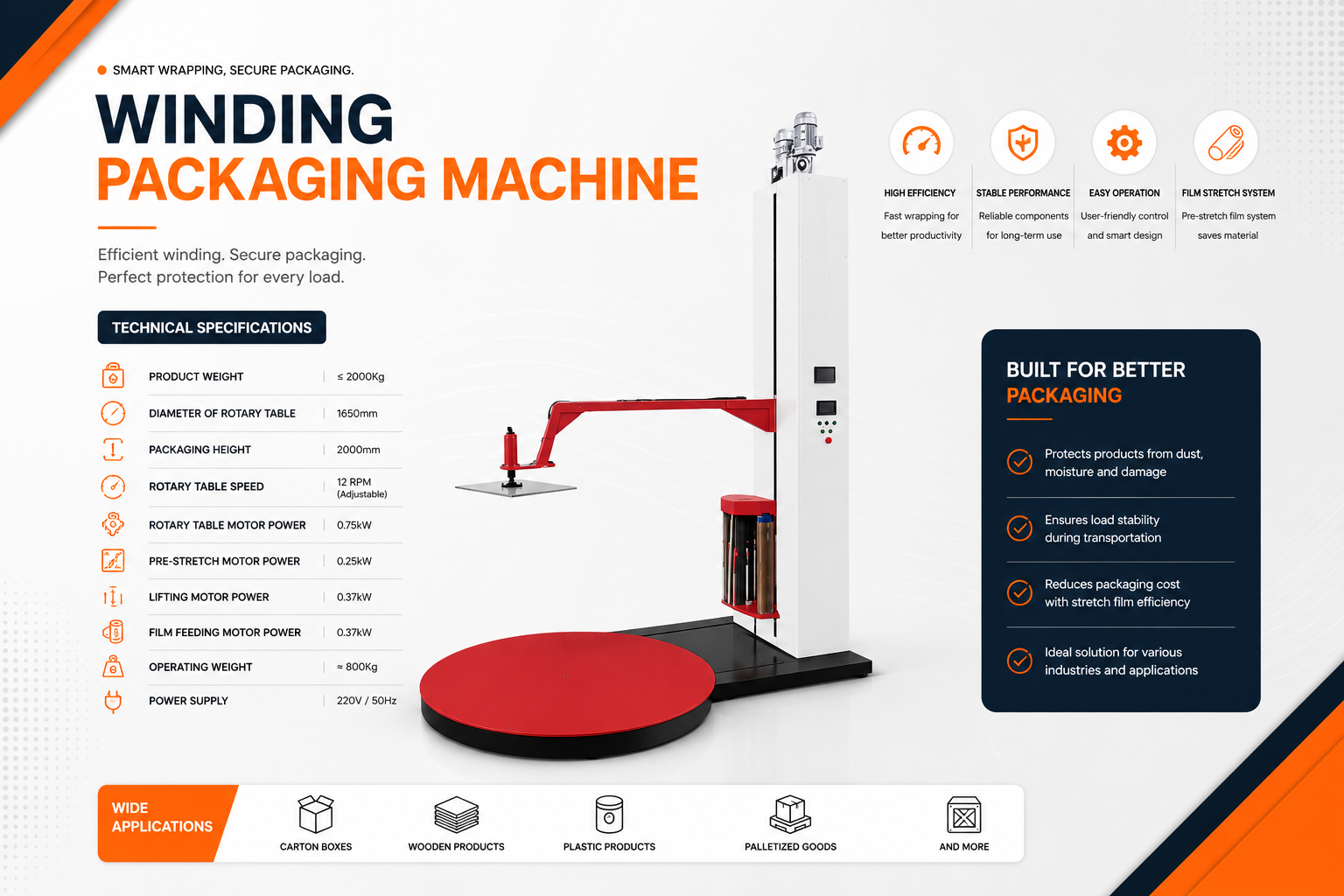

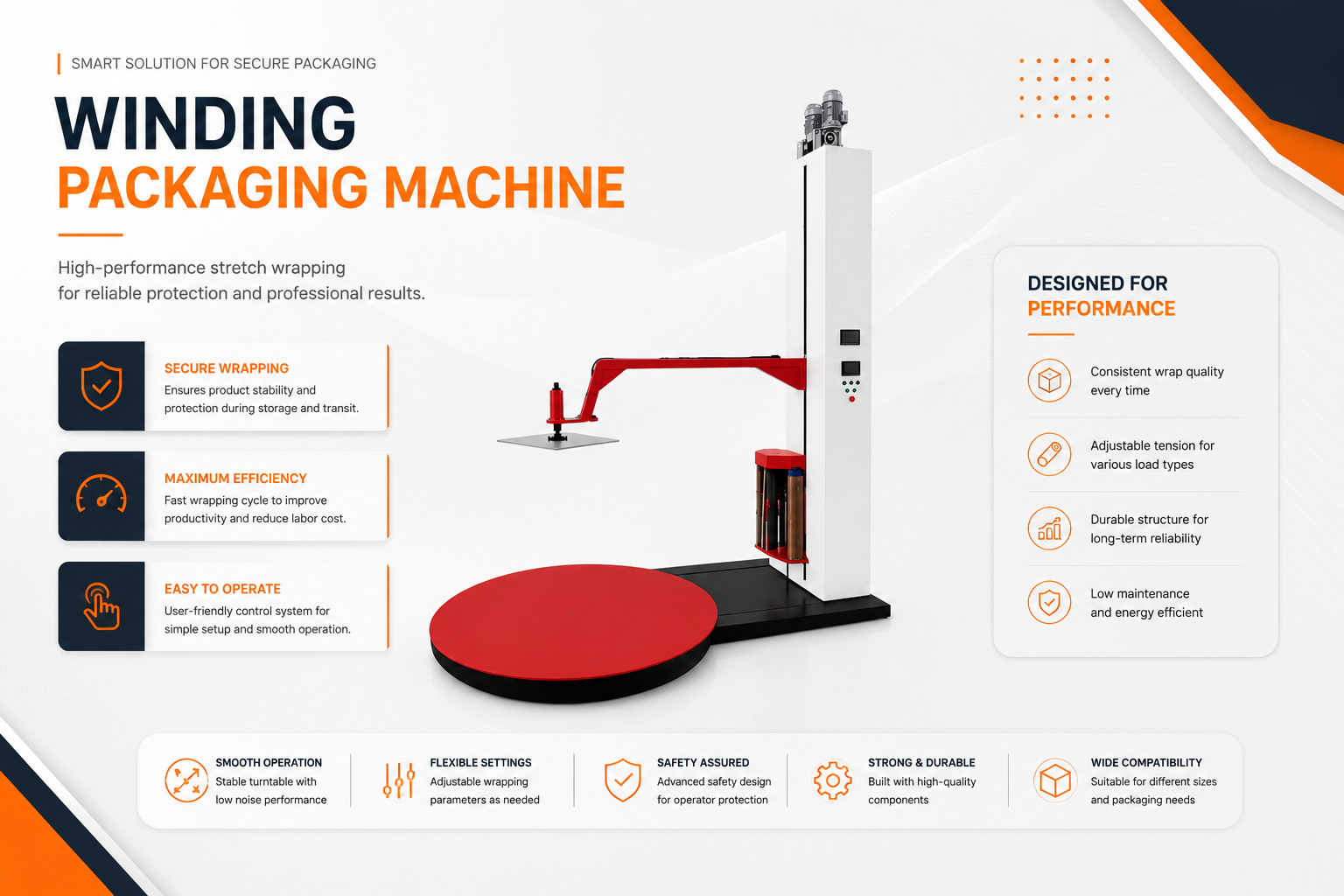

Winding Packaging Machine
High-Efficiency Automatic Pallet Stretch Wrapping Solution
The Winding Packaging Machine is a high-performance automatic pallet stretch wrapping system designed for secure and stable packaging of corrugated cartons, industrial products, palletized goods, and finished packaging materials. This advanced packaging machine is widely used in corrugated box manufacturing plants, logistics centers, warehouses, export industries, and industrial packaging operations to improve load protection, transportation safety, and packaging efficiency.
Equipped with a heavy-duty rotary turntable system and automatic film wrapping mechanism, the BYCR-1650 delivers consistent stretch wrapping quality while minimizing packaging material waste and reducing manual labor requirements. The machine ensures excellent pallet stabilization, making it ideal for transportation protection, warehouse storage, and export shipment packaging applications.
Its compact industrial structure, smooth operational performance, and user-friendly control system make it suitable for continuous industrial packaging operations. Designed for heavy-duty applications, the machine supports pallet loads up to 2000 Kg, providing reliable and secure wrapping performance for large and heavy products.
The BYCR-1650 Winding Packaging Machine helps businesses increase packaging productivity, improve operational efficiency, and reduce transit damage during logistics and shipment handling.
Key Features
- Fully automatic pallet winding and stretch wrapping system
- Heavy-duty rotary table with 1650 mm diameter
- Supports pallet loads up to 2000 Kg
- Variable frequency adjustable rotary table speed
- Stable stretch film feeding system for uniform wrapping
- Strong pallet stabilization for transportation safety
- Compact industrial design with smooth machine operation
- Energy-efficient motor configuration for reduced power consumption
- Reduces packaging film wastage and labor costs
- User-friendly control panel for easy operation
- Suitable for corrugated cartons, industrial goods, and palletized products
- Ideal for logistics centers, warehouses, and export packaging
- Reliable continuous industrial performance
- Improves packaging speed and packaging consistency
- Enhances product protection during transportation and storage
Technical Specifications
BYCR-1650 Winding Packaging Machine
- Product Weight Capacity: ≤ 2000 Kg
- Diameter of Rotary Table: 1650 mm
- Maximum Packaging Height: 2000 mm
- Height of Rotary Table from Ground: 77 mm
- Rotary Table Speed: 12 rpm (Variable Frequency Adjustable)
- Rotary Table Motor Power: 0.75 kW
- Pre-Stretching Mold Base Motor: 0.25 kW
- Lifting Motor Power: 0.37 kW
- Film Feeding Motor Power: 0.37 kW
- Operating Weight: Approx. 800 Kg
- Power Supply: 220V / 50Hz
Technical specifications are referenced from the Corrup2 machinery catalog.
Applications
The BYCR-1650 Winding Packaging Machine is widely used in:
- Corrugated carton packaging industries
- Pallet stretch wrapping applications
- Logistics and warehouse packaging operations
- Export shipment protection and transport safety
- Industrial product wrapping and stabilization
- FMCG product packaging lines
- Food and beverage pallet wrapping operations
- E-commerce warehouse packaging systems
- Manufacturing plant packaging departments
- Heavy-duty pallet stabilization applications
- Stretch film wrapping for transportation safety
- Packaging of stacked cartons and boxed products
This industrial pallet wrapping machine helps reduce transit damage, improve pallet load stability, and enhance packaging productivity in modern industrial environments.
Model Comparison
| Specification | BYCR-1650 Winding Packaging Machine | BYHD-2600/2800/3200 Automatic Folder Gluer |
|---|---|---|
| Machine Type | Winding Packaging Machine | Automatic Folder Gluer |
| Main Function | Pallet wrapping & stretch film packaging | Corrugated box folding & gluing |
| Application Area | Final packaging & logistics | Corrugated carton production |
| Product Handling | Wrapped pallet loads | Corrugated sheet processing |
| Maximum Load Capacity | ≤ 2000 Kg | Heavy corrugated board processing |
| Rotary Table Diameter | 1650 mm | Not Applicable |
| Packaging Height | 2000 mm | Depends on carton dimensions |
| Power Supply | 220V / 50Hz | 380V ±10%, 50Hz |
| Machine Weight | Approx. 800 Kg | Approx. 10T |
| Main Advantage | Transport protection & pallet stability | High-speed carton folding & gluing |
| Ideal Industry | Warehousing & logistics | Corrugated box manufacturing |
| Automation Type | Automatic wrapping | Automatic folder gluing |
Why Choose the Winding Packaging Machine?
It offers an efficient and reliable solution for industrial pallet wrapping and stretch film packaging applications. With its strong wrapping stability, automatic operation, and heavy-duty performance, this machine is an ideal choice for businesses looking to improve packaging quality, reduce labor dependency, and increase transportation safety for palletized products.
