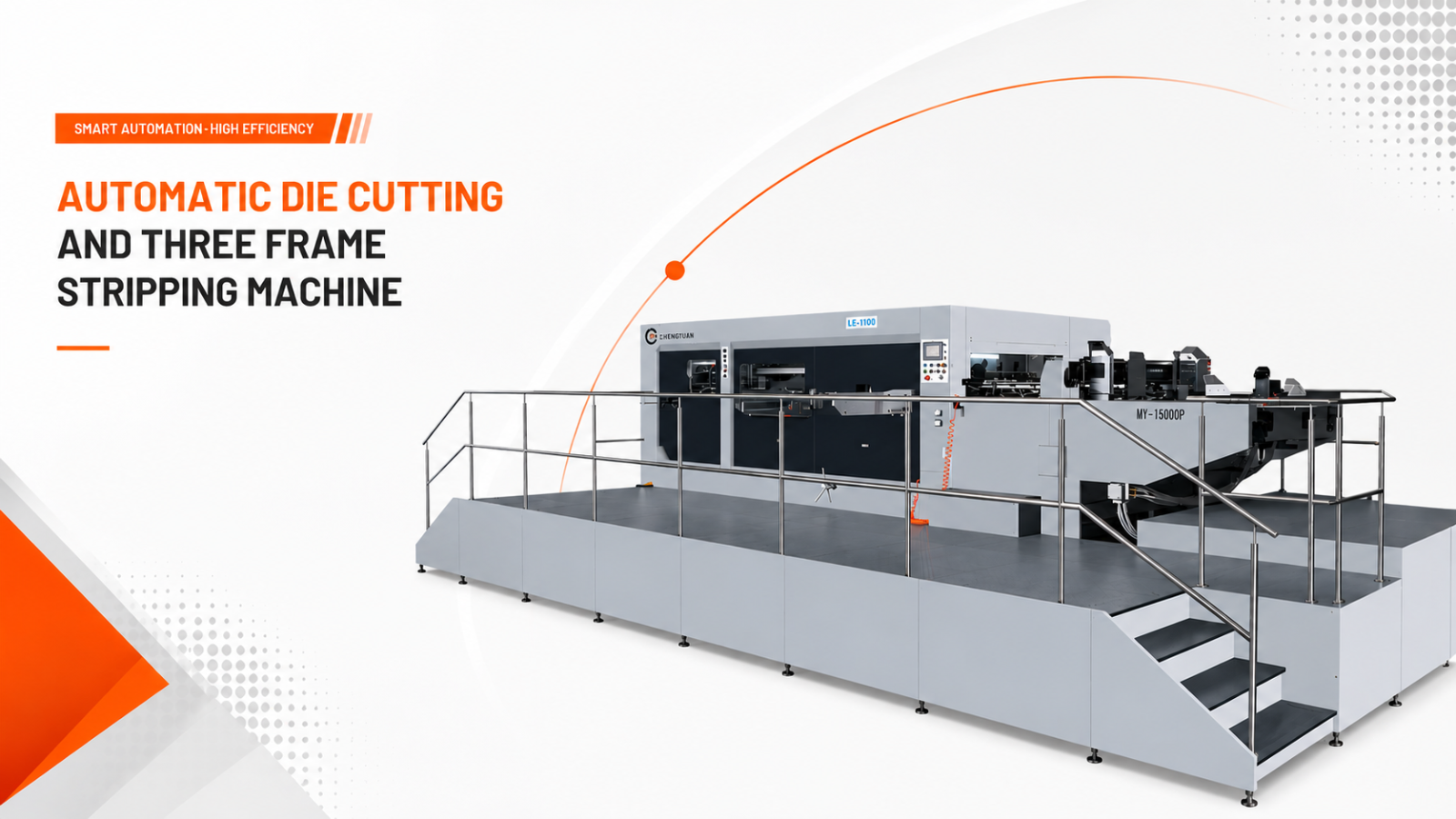

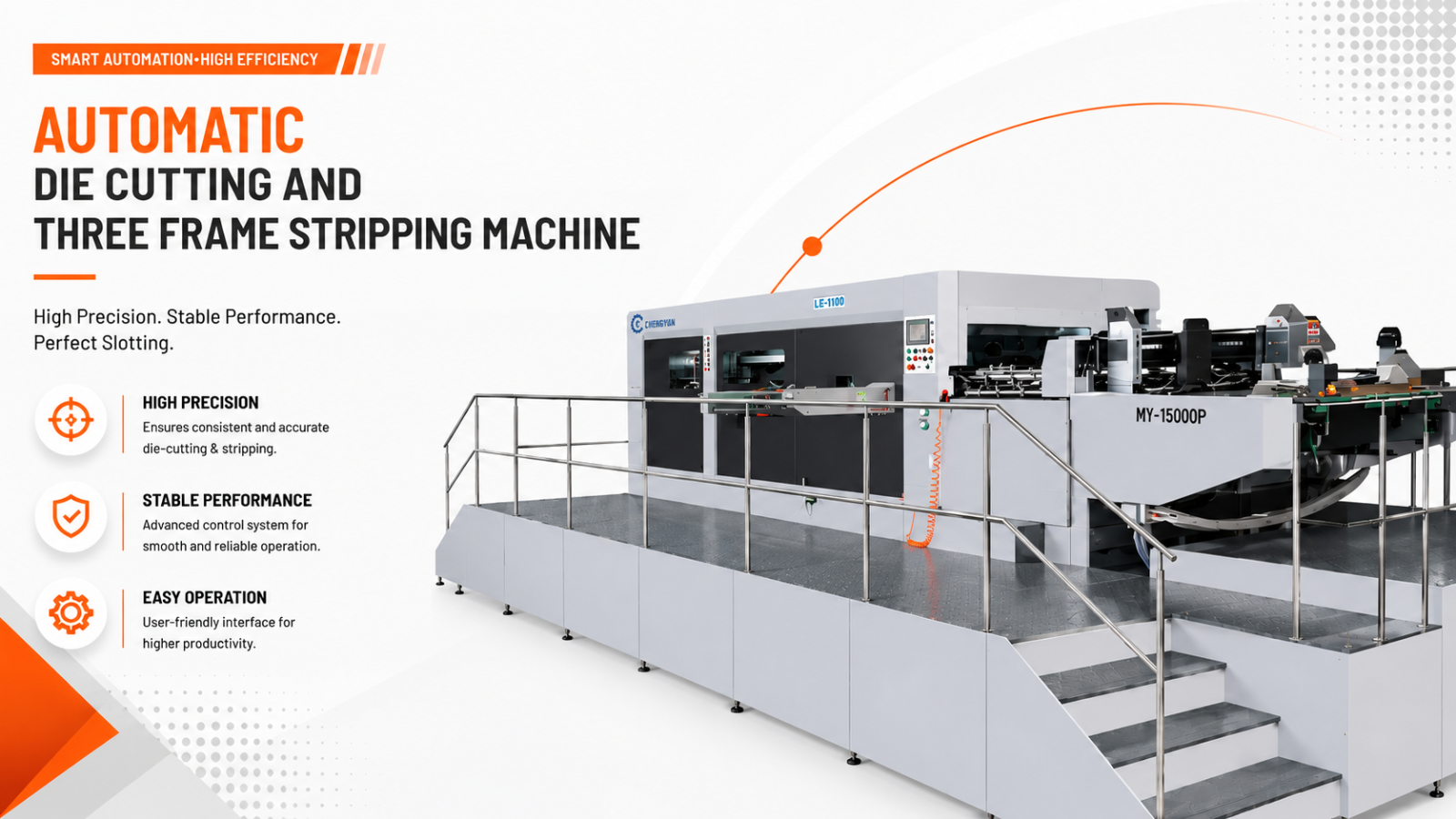

Automatic Die Cutting and Three Frames Stripping Machine
High-Speed Corrugated Die Cutting & Full Stripping Solution
The Automatic Die Cutting and Three Frames Stripping Machine is a high-performance industrial die-cutting solution specially engineered for corrugated carton manufacturing, color box converting, heavy-duty packaging production, and high-speed stripping operations. Moreover, this automatic die cutting and stripping machine delivers exceptional feeding stability, precise die-cutting accuracy, and powerful waste stripping efficiency for modern corrugated packaging industries.
Additionally, the MY Series Automatic Die Cutting and Three Frames Stripping Machines are developed using advanced domestic and international die-cutting technology to meet the growing demands of high-volume corrugated packaging production. As a result, manufacturers can achieve improved production efficiency, accurate corrugated sheet handling, and stable high-speed industrial operation.
The machine adopts advanced bottom suction feeding technology, high-strength gripper bars, precision intermittent transmission mechanisms, advanced pneumatic clutch systems, and intelligent PLC automation controls to ensure smooth paper transportation and highly accurate die-cutting performance during continuous industrial production. Furthermore, the three-frame full stripping system automatically removes waste materials during operation, significantly reducing manual labor and improving workshop cleanliness.
Its heavy-duty industrial machine structure, touchscreen human-machine interface, variable frequency speed control system, pneumatic locking plate mechanisms, and intelligent safety protection systems ensure stable, safe, and operator-friendly performance for large-format packaging applications. Additionally, the automatic oil cooling technology maintains stable pressure distribution and operating consistency even during long production cycles.
Supporting E, B, C, A, and AB flute corrugated boards up to 8.5 mm thickness, the 1300QP / 1500QP / 1700QP series is considered an ideal industrial die-cutting solution for corrugated carton manufacturers and heavy-duty packaging production facilities.
Key Features
- Advanced bottom suction feeding system
- Three-frame full stripping technology
- High-speed automatic die-cutting operation
- Automatic oil cooling system
- Heavy-duty industrial machine construction
- High-strength gripper bar system
- Intelligent PLC control system
- Touchscreen human-machine interface
- Pneumatic clutch and locking mechanism
- Precision intermittent transmission system
- Variable frequency speed regulation
- Stable high-speed continuous production
- Front, side, and rear positioning system
- Accurate die-cutting registration system
- Supports E/B/C/A/AB flute corrugated boards
- Handles corrugated thickness from 1 mm to 8.5 mm
- Full waste stripping during operation
- Adjustable die-cutting pressure system
- Multiple safety sensors and protection systems
- Optional no-gripper-margin die-cutting function
- High productivity with reduced labor cost
- Suitable for large-format carton production
- Optimized for industrial corrugated packaging plants
- Stable pressure with high operating precision
- Designed for heavy-duty packaging applications
Technical Specifications
MY-1300QP
- Maximum Paper Size: 1320 × 970 mm
- Minimum Paper Size: 500 × 400 mm
- Maximum Die Cutting Size: 1300 × 950 mm
- Maximum Die Cutting Pressure: 300N/m²
- Paper Range: E, B, C, A, and AB flute corrugated board
- Corrugated Thickness Support: 1–8.5 mm
- Maximum Die Cutting Speed: 6000 sheets/hour
- Total Power: 28 kW
- Total Weight: 24T
- Machine Dimensions: 11500 × 4500 × 2250 mm
MY-1500QP
- Maximum Paper Size: 1520 × 1100 mm
- Minimum Paper Size: 500 × 420 mm
- Maximum Die Cutting Size: 1500 × 1090 mm
- Maximum Die Cutting Pressure: 300N/m²
- Paper Range: E, B, C, A, and AB flute corrugated board
- Corrugated Thickness Support: 1–8.5 mm
- Maximum Die Cutting Speed: 6000 sheets/hour
- Total Power: 38 kW
- Total Weight: 25T
- Machine Dimensions: 11700 × 5500 × 2250 mm
MY-1700QP
- Maximum Paper Size: 1700 × 1200 mm
- Minimum Paper Size: 500 × 450 mm
- Maximum Die Cutting Size: 1680 × 1180 mm
- Maximum Die Cutting Pressure: 400N/m²
- Paper Range: E, B, C, A, and AB flute corrugated board
- Corrugated Thickness Support: 1–8.5 mm
- Maximum Die Cutting Speed: 5500 sheets/hour
- Total Power: 42 kW
- Total Weight: 35T
- Machine Dimensions: 11800 × 5600 × 3000 mm
Additionally, the machine is equipped with intelligent stripping systems and precision die-cutting mechanisms to ensure stable high-speed operation and accurate corrugated packaging production performance.
Applications
The 1300QP / 1500QP / 1700QP Automatic Die Cutting and Three Frames Stripping Machine is widely used for:
- Corrugated box die-cutting
- Heavy-duty carton manufacturing
- Packaging box stripping operations
- Large-format carton production
- Industrial packaging conversion
- Color carton processing
- Laminated corrugated board production
- Export carton manufacturing
- E-commerce carton production
- FMCG packaging industries
- Electronics packaging manufacturing
- Food and beverage carton production
- Pharmaceutical packaging applications
- Commercial packaging production
- High-volume corrugated packaging plants
- Industrial paperboard die-cutting operations
Furthermore, the machine helps manufacturers improve die-cutting precision, reduce labor dependency, and achieve superior corrugated packaging quality in industrial production environments.
Model Comparison
| Feature | MY-1300QP | MY-1500QP | MY-1700QP | Recommended Alternative Model |
|---|---|---|---|---|
| Machine Type | Automatic Die Cutting & Three Frames Stripping | Automatic Die Cutting & Three Frames Stripping | Automatic Die Cutting & Three Frames Stripping | MY-1700H Servo Feeding |
| Feeding Type | Bottom suction feeding | Bottom suction feeding | Bottom suction feeding | Servo feeding |
| Max Paper Size | 1320 × 970 mm | 1520 × 1100 mm | 1700 × 1200 mm | 1720 × 1260 mm |
| Max Die Cutting Size | 1300 × 950 mm | 1500 × 1090 mm | 1680 × 1180 mm | 1710 × 1250 mm |
| Max Running Speed | 6000 sheets/h | 6000 sheets/h | 5500 sheets/h | 5500 sheets/h |
| Max Pressure | 300N/m² | 300N/m² | 400N/m² | 300N/cm² |
| Corrugated Support | 1–8.5 mm | 1–8.5 mm | 1–8.5 mm | ≤ 8 mm |
| Stripping System | Three-frame full stripping | Three-frame full stripping | Three-frame full stripping | Optional stripping |
| Total Power | 28 kW | 38 kW | 42 kW | 28 kW |
| Best For | Medium corrugated packaging | Heavy-duty carton production | Large industrial packaging | Precision high-speed feeding |
| Industry Application | Corrugated carton plants | Packaging conversion industries | Heavy packaging production | Premium carton production |
Why Choose the Three Frames Stripping Machine?
The MY Series provides an efficient and reliable solution for high-speed corrugated carton die-cutting and full stripping operations. Moreover, the machine combines intelligent automation systems, precision feeding technology, and heavy-duty industrial construction to ensure accurate and continuous production performance.
Additionally, the machine helps manufacturers improve die-cutting quality, reduce labor costs, minimize material waste, and achieve superior corrugated packaging consistency. Therefore, it is an ideal industrial die-cutting solution for corrugated carton manufacturers, industrial packaging facilities, and heavy-duty packaging production industries.
For advanced corrugated packaging machinery and industrial automation solutions, visit Corrumatik.
Frequently Asked Questions
What is the Automatic Die Cutting and Three Frames Stripping Machine used for?
The machine is used for corrugated carton die-cutting, full waste stripping, embossing, creasing, and industrial packaging production applications.
Which materials are supported?
The machine supports E, B, C, A, and AB flute corrugated boards with thicknesses ranging from 1–8.5 mm.
Which industries use this machine?
It is widely used in corrugated packaging, carton manufacturing, FMCG packaging, food packaging, pharmaceutical packaging, and industrial printing industries.
What are the advantages of a three frames stripping machine?
Three frames stripping machines improve waste removal efficiency, increase production speed, reduce manual labor, and deliver stable high-speed corrugated packaging production performance.
