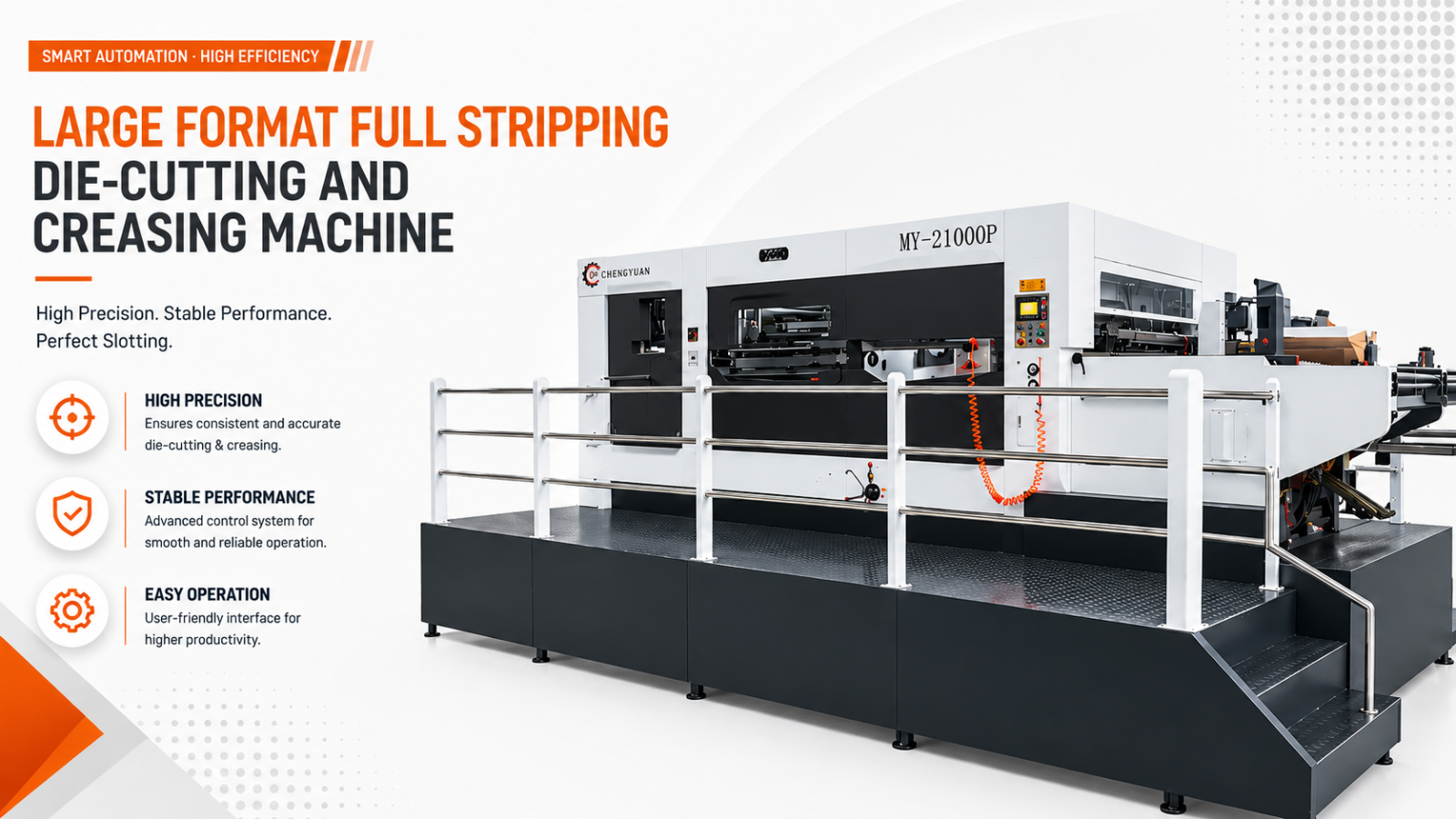

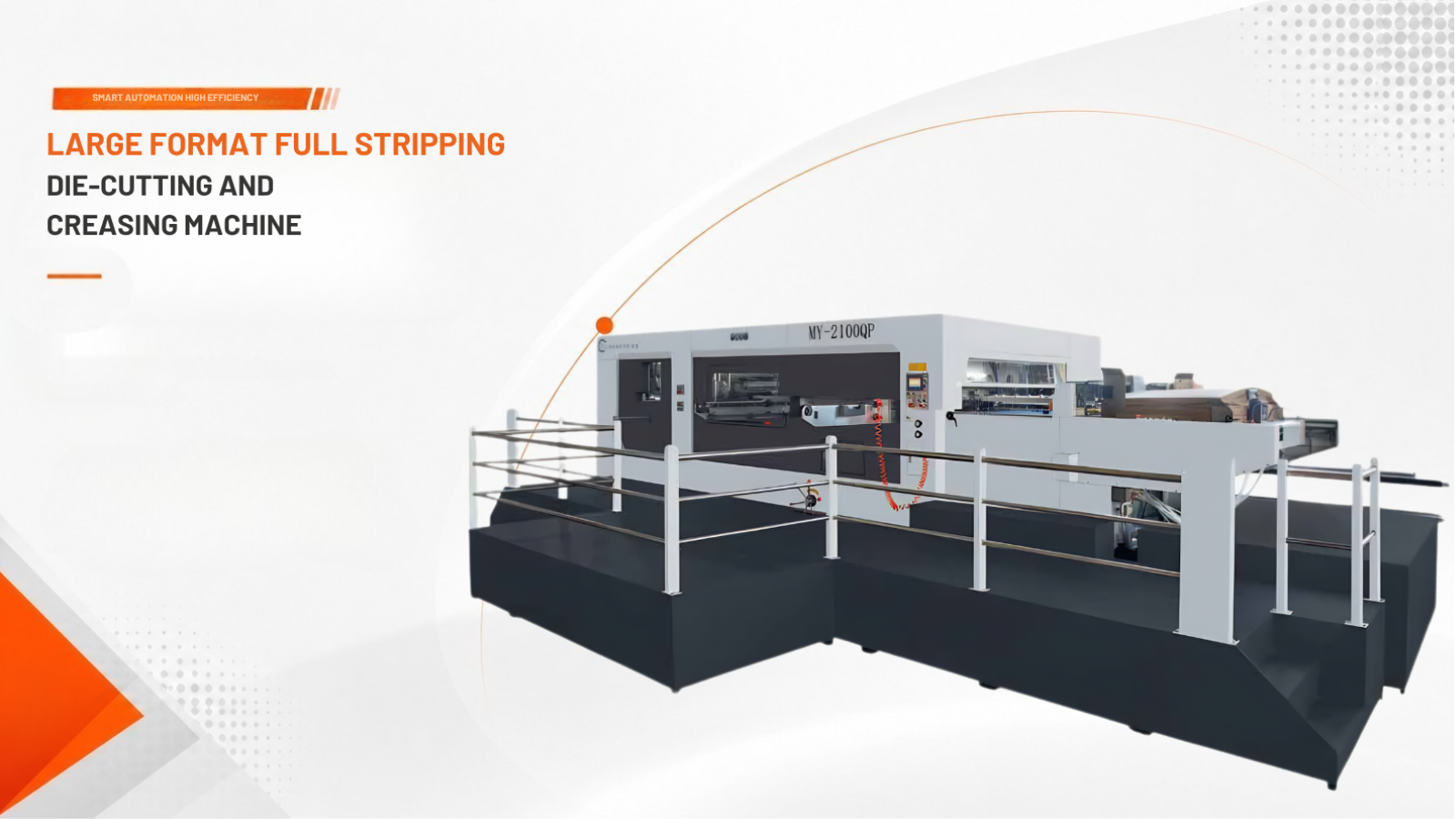

Large-format Full Stripping Die-cutting and Creasing Machine
Heavy-Duty Large-format Die-cutting & Full Stripping Solution
The 1900QP / 2100QP Large-format Full Stripping Die-cutting and Creasing Machine is a heavy-duty industrial die-cutting solution specially designed for large-format corrugated carton manufacturing, industrial packaging production, and high-volume box converting applications. Moreover, this large-format full stripping die-cutting and creasing machine delivers exceptional die-cutting precision, stable high-pressure performance, and reliable continuous operation for modern corrugated packaging industries.
Additionally, the MY Series Large-format Full Stripping Die-cutting and Creasing Machine is developed using advanced domestic and international die-cutting technology to meet the growing demand for oversized corrugated box processing and industrial packaging production. As a result, manufacturers can achieve accurate paper feeding, stable pressure distribution, and highly precise die-cutting performance during continuous industrial operation.
The machine adopts advanced full stripping technology, large-format processing capability, high-strength gripper bars, advanced feeding systems, precision intermittent mechanisms, and intelligent PLC automation control. Furthermore, its gearbox-driven transmission system improves operational stability, machine durability, and high-load working performance.
Front, side, and rear positioning systems ensure accurate sheet registration during die-cutting and creasing operations. Additionally, the pneumatic clutch system, pneumatic locking mechanism, variable frequency speed control, and intelligent human-machine interface improve operational efficiency while ensuring safe and user-friendly machine control.
Designed specifically for large-format corrugated board applications, the 1900QP / 2100QP series supports corrugated board thickness up to 8 mm and provides high-speed full stripping capability for complex packaging structures. Therefore, this machine is ideal for oversized carton manufacturing, heavy-duty packaging plants, and industrial corrugated box production.
Key Features
- Large-format full stripping die-cutting system
- Heavy-duty gearbox transmission structure
- High-strength gripper bar system
- Intelligent PLC automation control
- Touchscreen human-machine interface
- Advanced pneumatic clutch mechanism
- Pneumatic locking plate system
- Precision intermittent transmission mechanism
- Front, side, and rear sheet positioning system
- High-speed corrugated carton die-cutting
- Stable large-format paper feeding system
- Supports oversized corrugated sheets
- Full stripping and creasing in one process
- Variable frequency speed control system
- Adjustable front and rear die-cutting pressure
- Optional no-gripper-margin die-cutting
- Multiple intelligent safety protection sensors
- Stable continuous industrial production
- High-precision die-cutting accuracy
- Heavy-load industrial machine structure
- Suitable for thick corrugated board processing
- Efficient waste stripping technology
- Reduced labor cost and improved production efficiency
- Designed for large-format carton manufacturing
- Optimized for industrial corrugated packaging applications
Technical Specifications
MY-1900QP
- Maximum Paper Size: 1900 × 1400 mm
- Minimum Paper Size: 800 × 600 mm
- Maximum Die Cutting Size: 1890 × 1380 mm
- Maximum Die Cutting Pressure: 300N/cm²
- Maximum Paper Thickness: 8 mm
- Maximum Die Cutting Speed: 4000 sheets/hour
- Maximum Feeding Pile Height: 1400 mm
- Maximum Delivery Pile Height: 1200 mm
- Total Power: 25 kW
- Machine Weight: 40T
- Machine Dimensions: 6900 × 6100 × 2500 mm
MY-2100QP
- Maximum Paper Size: 2100 × 1550 mm
- Minimum Paper Size: 800 × 600 mm
- Maximum Die Cutting Size: 2090 × 1530 mm
- Maximum Die Cutting Pressure: 300N/cm²
- Maximum Paper Thickness: 8 mm
- Maximum Die Cutting Speed: 3600 sheets/hour
- Maximum Feeding Pile Height: 1400 mm
- Maximum Delivery Pile Height: 1200 mm
- Total Power: 25 kW
- Machine Weight: 48T
- Machine Dimensions: 6900 × 6300 × 2500 mm
Additionally, the machine is equipped with large-format feeding systems, gearbox-driven transmission technology, and full stripping mechanisms to ensure stable high-load operation and accurate corrugated packaging production performance.
Applications
The 1900QP / 2100QP Large-format Full Stripping Die-cutting and Creasing Machine is widely used for:
- Large-format corrugated carton manufacturing
- Industrial packaging box production
- Heavy-duty corrugated box die-cutting
- Oversized carton creasing operations
- High-volume packaging conversion
- Export carton manufacturing
- E-commerce packaging production
- FMCG corrugated carton production
- Heavy industrial packaging applications
- Appliance packaging box production
- Furniture packaging carton manufacturing
- Automotive parts packaging applications
- Logistics and shipping carton production
- Laminated corrugated board processing
- Multi-layer corrugated carton manufacturing
- Commercial packaging conversion plants
Furthermore, the machine helps manufacturers improve die-cutting precision, reduce manual labor, and achieve stable production quality in large-format industrial corrugated packaging environments.
Model Comparison
| Feature | MY-1900QP | MY-2100QP | Recommended Alternative Model |
|---|---|---|---|
| Machine Type | Large-format Full Stripping Die-cutting & Creasing Machine | Large-format Full Stripping Die-cutting & Creasing Machine | MY-1700QP Automatic Die Cutting & Three Frames Stripping Machine |
| Max Paper Size | 1900 × 1400 mm | 2100 × 1550 mm | 1700 × 1200 mm |
| Max Die Cutting Size | 1890 × 1380 mm | 2090 × 1530 mm | 1680 × 1180 mm |
| Max Pressure | 300N/cm² | 300N/cm² | 400N/m² |
| Max Paper Thickness | 8 mm | 8 mm | 8.5 mm |
| Max Running Speed | 4000 sheets/h | 3600 sheets/h | 5500 sheets/h |
| Feeding System | Large-format automatic feeding | Large-format automatic feeding | Bottom suction feeding |
| Stripping System | Full stripping | Full stripping | Three-frame full stripping |
| Total Power | 25 kW | 25 kW | 42 kW |
| Machine Weight | 40T | 48T | 35T |
| Best For | Large industrial cartons | Ultra-large packaging production | High-speed corrugated packaging |
| Industry Application | Heavy-duty packaging plants | Large carton manufacturing | Corrugated packaging industries |
Why Choose the Large-format Full Stripping Die-cutting and Creasing Machine?
The MY-1900QP / MY-2100QP series provides an efficient and reliable solution for oversized carton die-cutting, full stripping, and heavy-duty corrugated packaging production. Moreover, the machine combines large-format processing capability, intelligent PLC automation, gearbox-driven transmission, and high-strength gripper technology to ensure accurate and continuous production performance.
Additionally, the machine helps manufacturers improve die-cutting accuracy, reduce labor costs, minimize material waste, and achieve consistent large-format carton quality. Therefore, it is an ideal industrial die-cutting solution for oversized corrugated carton manufacturers, heavy-duty packaging producers, and industrial box converting plants.
For advanced corrugated packaging machinery and industrial automation solutions, visit Corrumatik.
Frequently Asked Questions
What is the Large-format Full Stripping Die-cutting and Creasing Machine used for?
The machine is used for oversized corrugated carton die-cutting, creasing, full stripping, and industrial packaging production.
Which materials are supported?
The machine supports large-format corrugated boards with thickness up to 8 mm.
Which industries use this machine?
It is widely used in corrugated packaging, furniture packaging, appliance packaging, automotive parts packaging, export carton manufacturing, and industrial box production.
What are the advantages of a large-format full stripping die-cutting machine?
Large-format full stripping die-cutting machines improve waste removal efficiency, increase die-cutting accuracy, reduce manual labor, and support oversized industrial carton production.
