Full Automatic Flip and Flop
High-Speed Fully Automatic Corrugated Board Laminating Solution

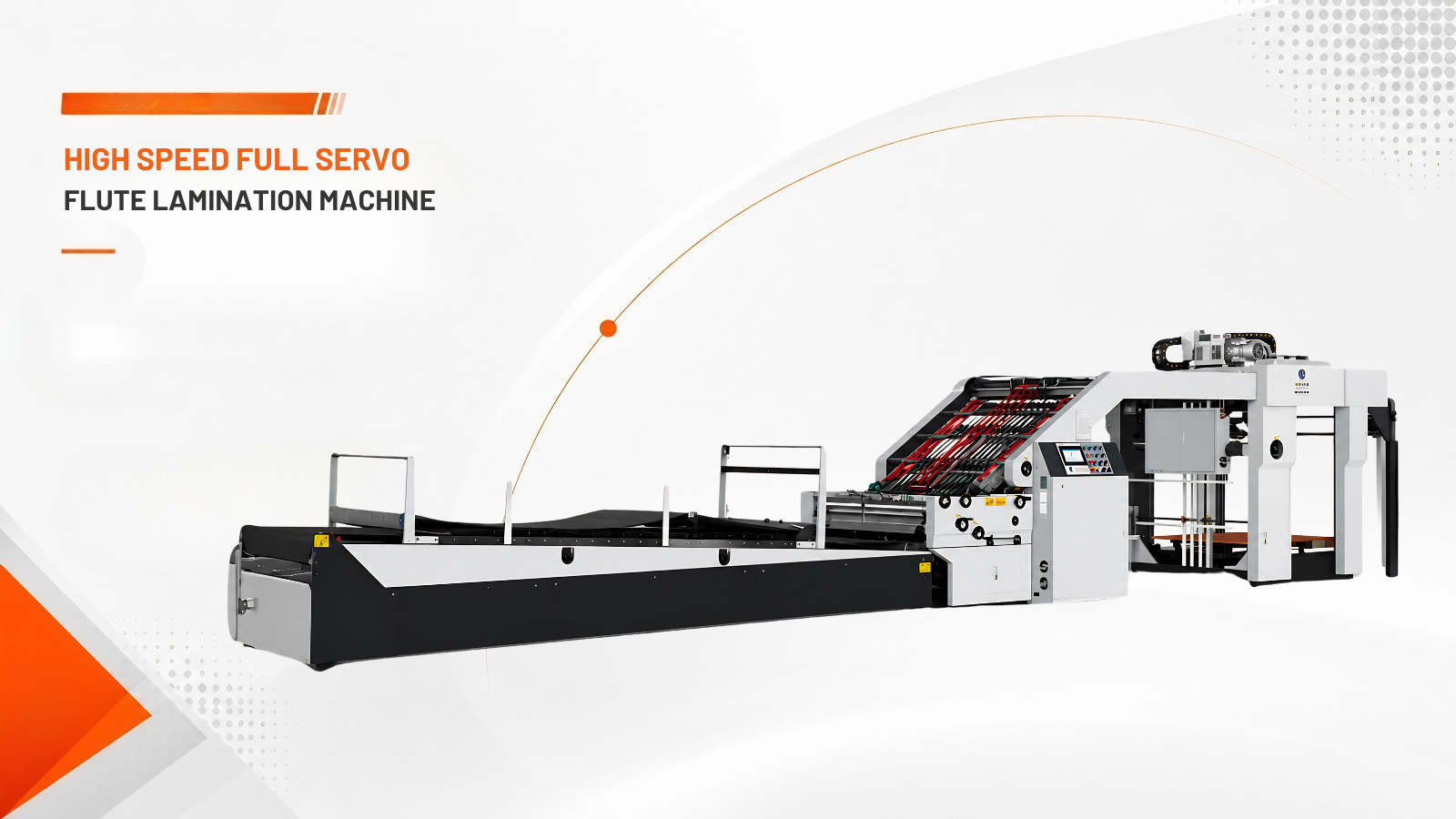

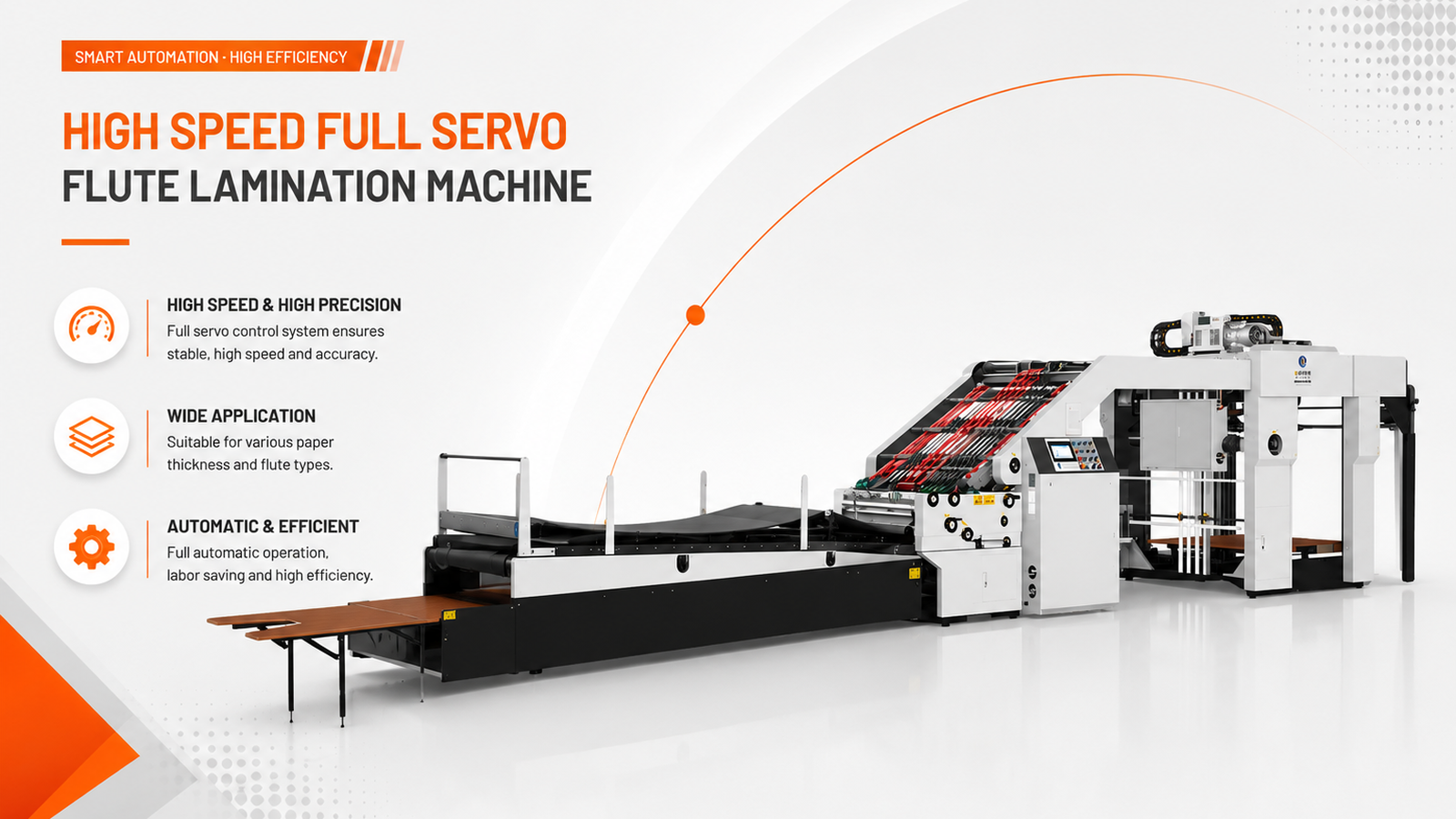

The High Speed Full Servo Flute Laminating Machine is an advanced fully automatic flute laminating solution engineered for high-speed corrugated board lamination, carton mounting, and industrial packaging production. Moreover, this full servo flute laminating machine delivers highly accurate sheet alignment, stable high-speed operation, and exceptional laminating precision for modern corrugated packaging industries.
Additionally, the HH Series Full Servo Flute Laminating Machine is specially developed for laminating printed face paper with corrugated board in high-volume packaging production environments. As a result, manufacturers can achieve improved laminating precision, strong bonding performance, and stable industrial production efficiency.
The machine adopts advanced servo feeding technology, intelligent gluing systems, precision positioning mechanisms, and automatic flip and flop functionality to ensure accurate sheet registration and smooth paper transportation during continuous industrial operation. Furthermore, the fully synchronized servo control system minimizes sheet deviation while maintaining consistent production speeds up to 155 meters per minute.
Its intelligent automation workflow, independent face paper feeding system, bottom sheet feeding mechanism, and industrial-grade gluing roller technology make it suitable for laminated corrugated packaging, display packaging, export carton manufacturing, and heavy-duty packaging applications. Therefore, the machine is considered an ideal laminating solution for corrugated carton plants, industrial packaging facilities, and commercial packaging production lines.
Key Features
- Full servo controlled flute laminating system
- High-speed automatic laminating operation
- Fully automatic flip and flop mechanism
- Intelligent face paper feeding unit
- Precision bottom paper feeding system
- Advanced gluing and coating system
- High laminating precision up to ±1 mm
- Stable continuous industrial operation
- Supports corrugated board lamination
- Heavy-duty industrial machine structure
- Servo synchronized sheet alignment technology
- High-speed production up to 155 m/min
- Suitable for laminated corrugated packaging
- Smooth and accurate paper transportation
- Intelligent automatic stacking system
- Strong bonding and laminating performance
- Easy operation and maintenance
- Energy-efficient servo drive system
- Large-format sheet processing capability
- Stable high-volume production performance
- High accuracy for packaging applications
- Optimized for corrugated carton manufacturing
- Industrial-grade gluing roller technology
- Fully automated production workflow
- Designed for modern packaging industries
Technical Specifications
HH-1450
- Maximum Sheet Size: 1450 × 1450 mm
- Minimum Sheet Size: 400 × 400 mm
- Face Paper Thickness: 200–800 g/m²
- Bottom Paper Thickness: 0.5–10 mm
- Machine Speed: 155 m/min
- Laminating Precision: ±1 mm
- Machine Dimensions: 15220 × 2385 × 2600 mm
- Total Power: 25 kW
- Machine Weight: About 6.2T
HH-1700
- Maximum Sheet Size: 1700 × 1700 mm
- Minimum Sheet Size: 400 × 400 mm
- Face Paper Thickness: 200–800 g/m²
- Bottom Paper Thickness: 0.5–10 mm
- Machine Speed: 155 m/min
- Laminating Precision: ±1 mm
- Machine Dimensions: 17150 × 2635 × 2790 mm
- Total Power: 30 kW
- Machine Weight: About 7.5T
Additionally, the machine is equipped with full servo synchronization systems and intelligent laminating control mechanisms to ensure stable high-speed operation and accurate corrugated board lamination performance.
Applications
The 1450 / 1700 High Speed Full Servo Flute Laminating Machine is widely used for:
- Corrugated carton laminating
- Printed carton mounting
- Packaging box production
- Corrugated board lamination
- FMCG packaging manufacturing
- Food and beverage carton production
- Electronics packaging applications
- Industrial packaging box manufacturing
- Luxury packaging production
- Laminated corrugated display boxes
- Export carton manufacturing
- E-commerce packaging production
- Commercial packaging conversion
- Multi-layer corrugated packaging
- Heavy-duty corrugated carton production
- High-speed industrial laminating operations
Furthermore, the machine helps manufacturers improve laminating precision, reduce production downtime, and achieve superior corrugated packaging quality in industrial packaging production environments.
Model Comparison
| Feature | HH-1450 | HH-1700 | Recommended Alternative Model |
|---|---|---|---|
| Machine Type | Full Servo Flute Laminating Machine | Full Servo Flute Laminating Machine | MY-1700H Servo Feeding Die Cutting Machine |
| Maximum Sheet Size | 1450 × 1450 mm | 1700 × 1700 mm | 1720 × 1260 mm |
| Minimum Sheet Size | 400 × 400 mm | 400 × 400 mm | 600 × 600 mm |
| Face Paper Thickness | 200–800 g/m² | 200–800 g/m² | 120–2000 g/m² |
| Bottom Paper Thickness | 0.5–10 mm | 0.5–10 mm | Corrugated ≤ 8 mm |
| Maximum Speed | 155 m/min | 155 m/min | 5500 sheets/hour |
| Precision | ±1 mm | ±1 mm | High-precision servo feeding |
| Power | 25 kW | 30 kW | 28 kW |
| Machine Weight | About 6.2T | About 7.5T | 24T |
| Best Application | Medium-large carton laminating | Large-format packaging lamination | Heavy-duty die cutting & corrugated processing |
| Automation | Full servo automatic | Full servo automatic | Servo feeding automation |
| Industry Use | Corrugated packaging | Industrial carton production | Corrugated box manufacturing |
Why Choose the Full Servo Flute Laminating Machine?
The HH Series provides an efficient and reliable solution for high-speed corrugated board laminating and industrial carton mounting operations. Moreover, the machine combines intelligent servo automation, precision positioning technology, and stable industrial construction to ensure accurate and continuous production performance.
Additionally, the machine helps manufacturers improve laminating quality, reduce material waste, minimize labor dependency, and achieve superior corrugated packaging consistency. Therefore, it is an ideal laminating solution for corrugated carton manufacturers, industrial packaging facilities, and commercial packaging production industries.
For advanced corrugated packaging machinery and industrial automation solutions, visit Corrumatik.
Frequently Asked Questions
What is the Full Servo Flute Laminating Machine used for?
The machine is used for corrugated board lamination, carton mounting, and industrial packaging production applications.
Which materials are supported?
The machine supports face paper thickness from 200–800 g/m² and corrugated board thickness from 0.5–10 mm.
Which industries use this machine?
It is widely used in corrugated packaging, FMCG packaging, food and beverage carton production, electronics packaging, export carton manufacturing, and industrial packaging industries.
What are the advantages of a flute laminating machine?
Flute laminating machines improve laminating precision, increase production efficiency, reduce material waste, and deliver stable high-speed corrugated packaging production performance.
