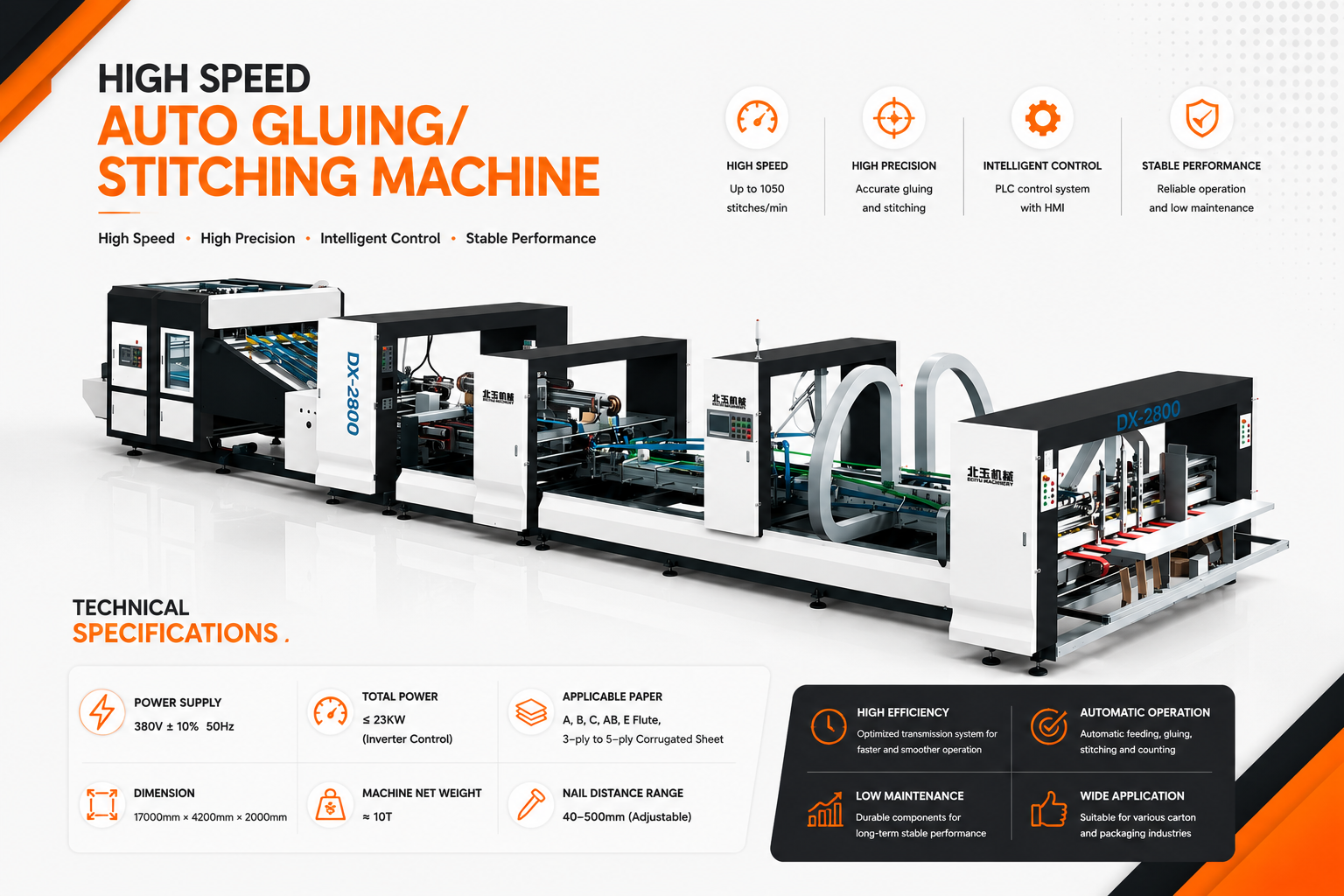

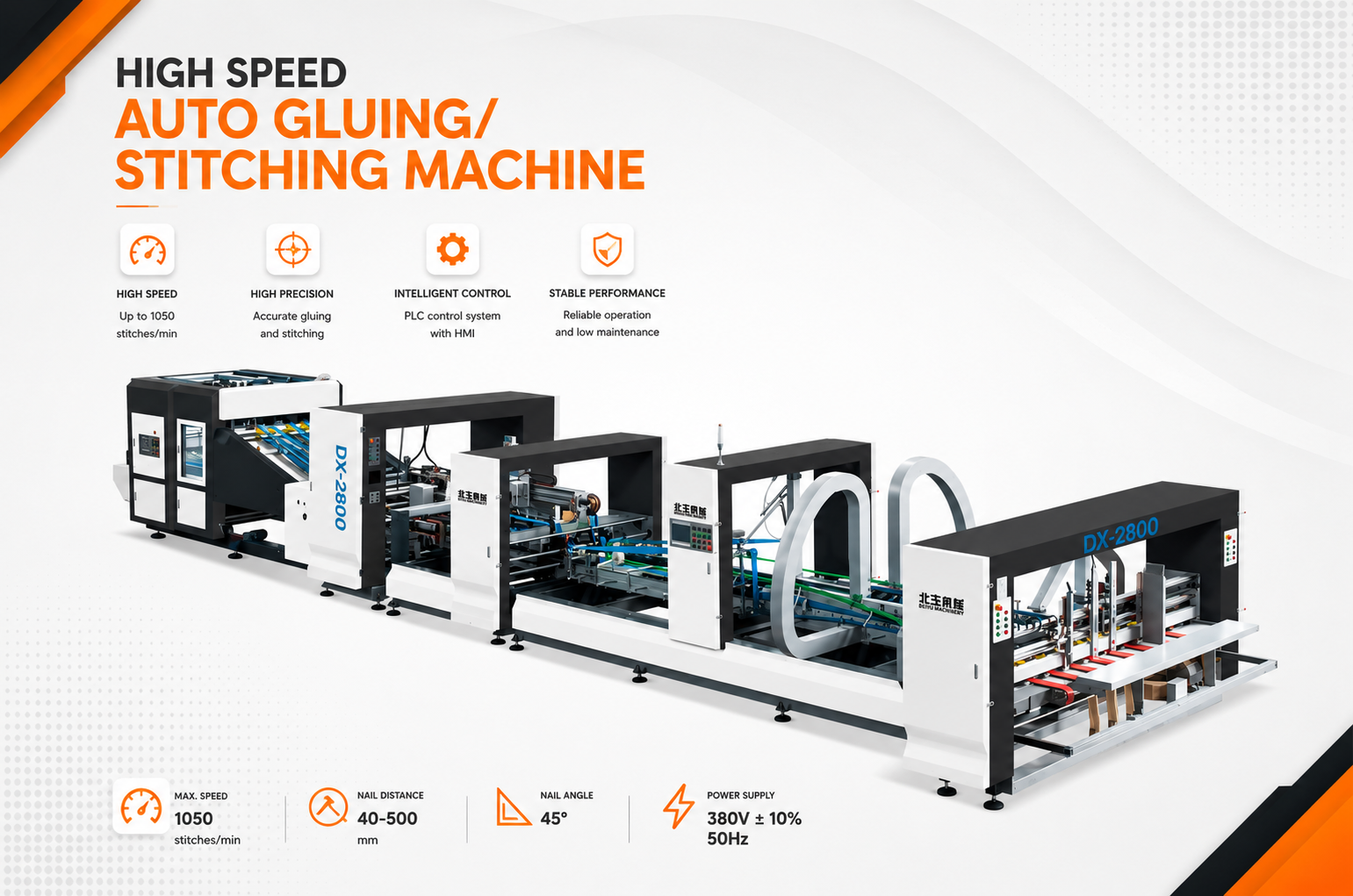

High Speed Auto Gluing / Stitching Machine
Fully Automatic Corrugated Box Folding, Gluing & Stitching Solution
The BYDX-2600 / 2800 / 3200 High Speed Auto Gluing / Stitching Machine is a fully automatic corrugated carton folding, gluing, and stitching system designed for high-volume corrugated box manufacturing operations. Moreover, this advanced industrial packaging machine combines intelligent automation, servo-driven precision, high-speed stitching performance, and accurate folding technology to produce durable corrugated cartons with superior finishing quality.
Additionally, the BYDX series supports A, B, C, and AB flute corrugated sheets, including both 3-ply and 5-ply corrugated boards. The machine integrates intelligent PLC control systems, Human-Machine Interface (HMI) operation, servo motor technology, automatic wire feeding systems, and precision folding mechanisms to ensure smooth, stable, and efficient production performance.
Furthermore, this fully automatic folder gluer and stitching machine is specially designed for corrugated box manufacturers handling large-scale carton production for industries such as e-commerce, logistics, FMCG, export packaging, industrial packaging, food and beverage, and heavy-duty shipping carton applications.
As a result, the BYDX series significantly improves packaging productivity while reducing manual labor and ensuring consistent carton quality. Therefore, it is considered an ideal solution for modern corrugated packaging plants seeking high-speed automated production systems.
Key Features
- Fully automatic folding, gluing, and stitching integrated system
- High-speed corrugated carton forming with superior finishing quality
- Intelligent PLC and Human-Machine Interface (HMI) control system
- Servo motor-driven operation for stable and efficient production
- Six adjustable front suction feeding ports for accurate paper feeding
- Secondary creasing system for precise carton folding
- Small-arm sorting function for faster order changeover
- Intelligent automatic wire feeding system for accurate stitching
- High-speed stitching capability up to 1050 nails per minute
- Adjustable nail pitch range from 40–500 mm
- Supports A/B/C/AB flute corrugated sheets
- Suitable for 3-ply and 5-ply corrugated boards
- Heavy-duty industrial structure for continuous production operations
- Frequency inverter speed control for energy-efficient operation
- Accurate folding and stable stitching for export-quality cartons
- Improves carton consistency and production efficiency
- Reduces manual labor and operational downtime
Technical Specifications
BYDX-2600 / 2800 / 3200
- Machine Type: Fully Automatic High Speed Auto Gluing / Stitching Machine
- Applicable Paper Range: A, B, C, AB flute corrugated sheets
- Supported Board Type: 3-ply and 5-ply corrugated board
- Total Power: ≤ 23KW with inverter speed control
- Machine Net Weight: Approx. 12 Tons
- Machine Dimension: 19000 mm × 4200 mm
- Nail Distance Range: 40–500 mm
- Nail Angle: 45°
- Air Source Standard: 0.6–0.8 MPa
- Power Supply: 380V ±10%, 50Hz, 3P 5W
- Maximum Stitching Speed: 1050 nails/minute
- Number of Nails: 1–99 nails
- Wire Specification: Standard 17 & 18 gauge stitching wire
Additionally, the machine is equipped with intelligent wire feeding technology, servo-driven operation, and automated folding systems for high-speed corrugated box production. Therefore, manufacturers can achieve improved production consistency and reduced operational downtime.
Applications
The BYDX-2600 / 2800 / 3200 High Speed Auto Gluing / Stitching Machine is widely used in:
- Corrugated carton manufacturing industries
- E-commerce shipping box production
- Industrial packaging box manufacturing
- FMCG corrugated carton production
- Export packaging carton manufacturing
- Heavy-duty corrugated transport box production
- Food and beverage packaging cartons
- Agricultural product corrugated cartons
- Logistics and warehouse packaging solutions
- Electronic goods corrugated packaging
- Large-size corrugated box production
- Industrial shipping carton manufacturing
Furthermore, folder gluer and stitching machines are essential for high-volume packaging industries requiring durable, accurately folded, and securely stitched corrugated cartons. As a result, businesses can improve packaging quality, increase operational efficiency, and reduce manual production errors.
Model Comparison
| Specification | BYDX-2600/2800/3200 | BYHD-2600/2800/3200 |
|---|---|---|
| Machine Type | High Speed Auto Gluing/Stitching Machine | High Speed Auto Gluing/Stitching Machine |
| Total Power | ≤ 23KW | ≤ 23KW |
| Machine Weight | Approx. 12T | Approx. 10T |
| Machine Dimension | 19000 × 4200 mm | 17000 × 4200 mm |
| Applicable Board | A/B/C/AB Flute Corrugated Board | A/B/C/AB Flute Corrugated Board |
| Supported Board Layers | 3-Ply & 5-Ply | 3-Ply & 5-Ply |
| Nail Distance Range | 40–500 mm | 40–500 mm |
| Stitching Speed | 1050 nails/min | 1050 nails/min |
| Control System | PLC + HMI + Servo Motor | PLC + HMI + Servo Motor |
| Best Suitable For | Large-format heavy-duty corrugated cartons | Standard corrugated carton production |
| Production Capability | Higher heavy-duty production stability | Compact and energy-efficient operation |
Why Choose the BYDX High Speed Auto Gluing / Stitching Machine?
The BYDX series offers a reliable and efficient solution for modern corrugated box manufacturing industries requiring high-speed production, strong stitching quality, and accurate carton folding. Moreover, its advanced automation system ensures stable production performance and consistent carton quality.
Additionally, the machine helps reduce labor dependency, improve production speed, and enhance packaging efficiency. Therefore, it is an ideal choice for corrugated packaging manufacturers seeking high-performance industrial automation solutions.
