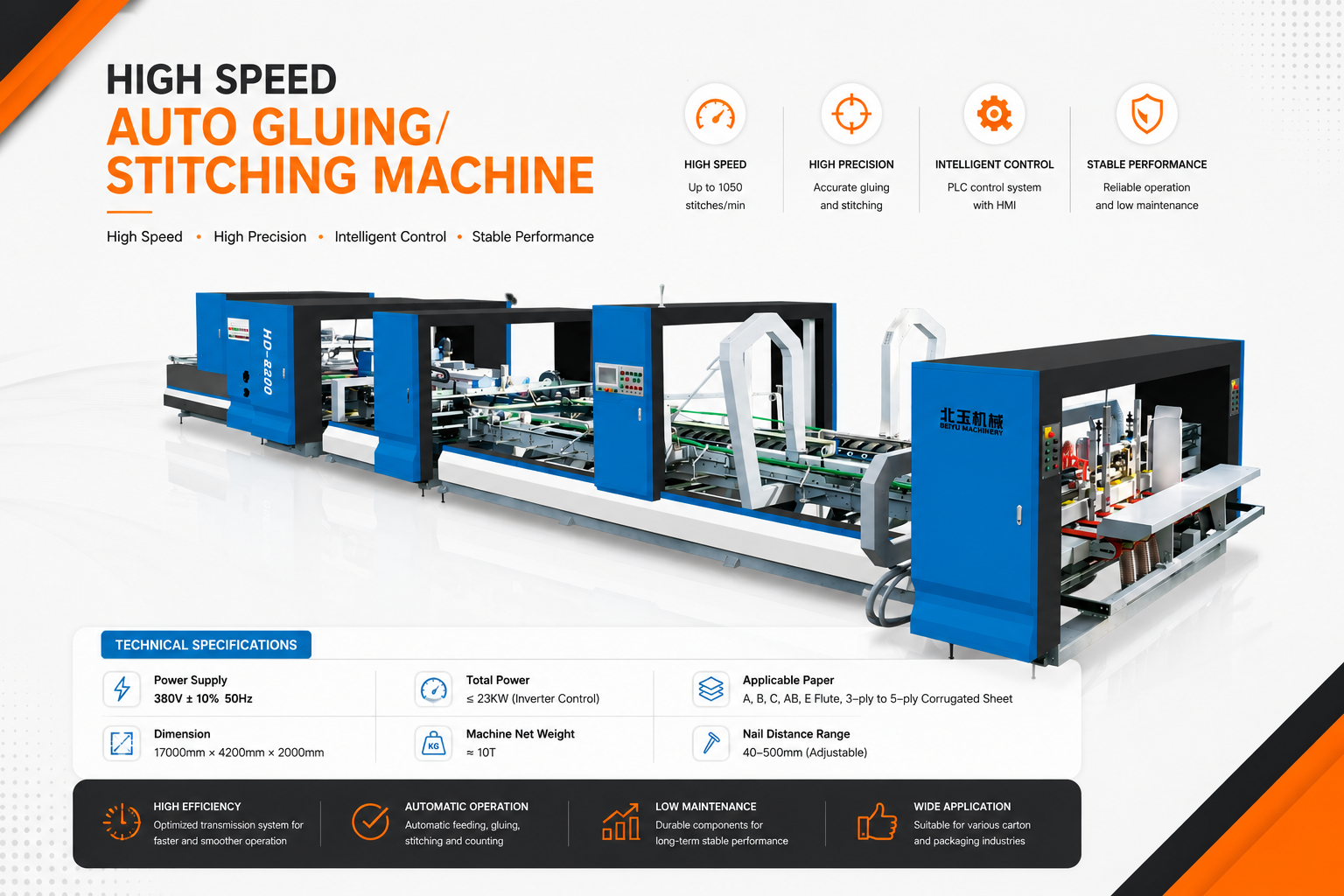

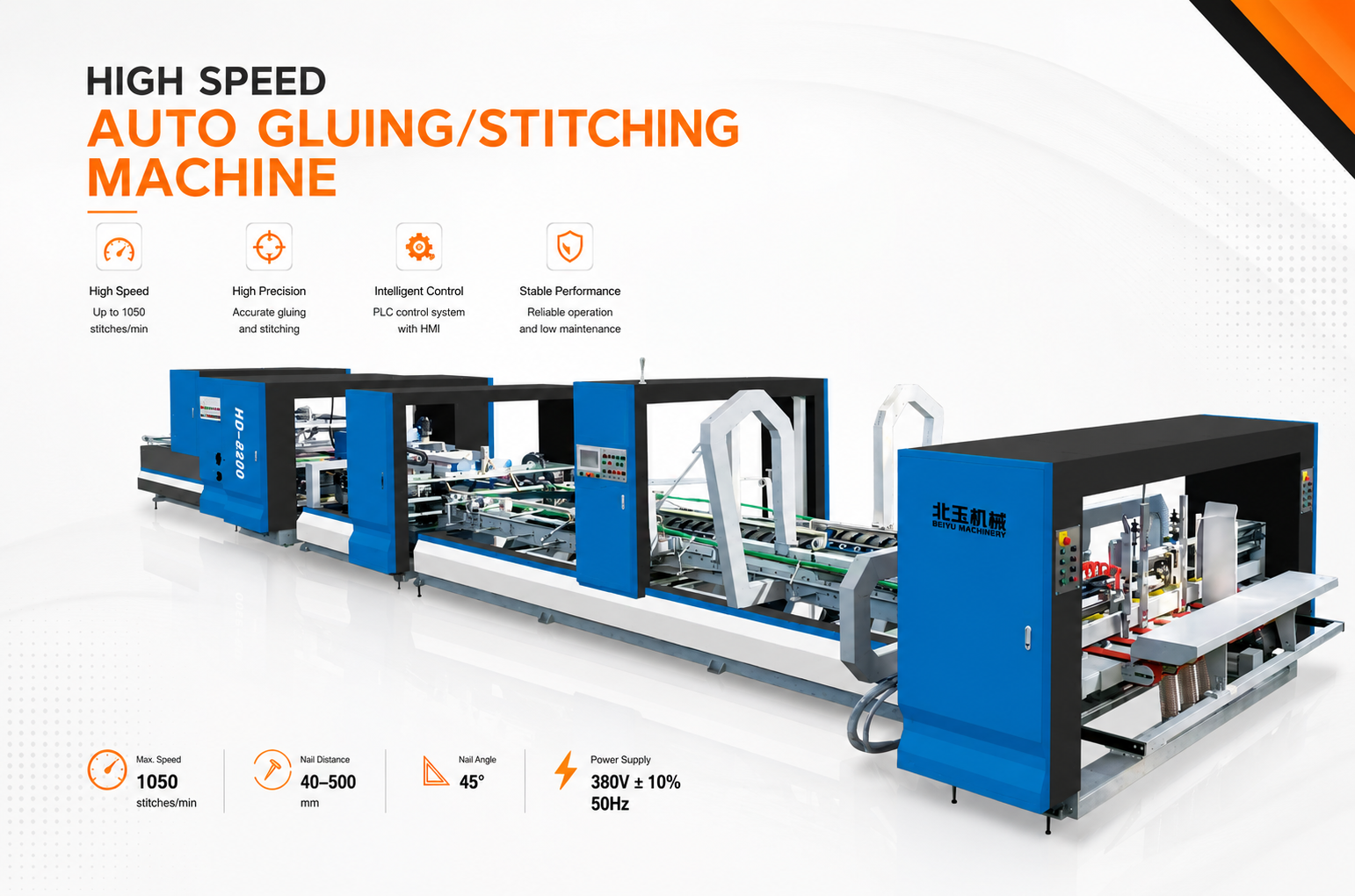

High Speed Auto Gluing Machine
Fully Automatic Corrugated Carton Gluing & Stitching Solution
The High Speed Auto Gluing Stitching Machine is a fully automatic corrugated carton production solution designed for high-speed gluing, folding, stitching, and heavy-duty packaging applications. Moreover, this automatic folder gluer and stitching machine combines multiple production functions into one integrated system to improve carton forming efficiency, bonding strength, and stitching accuracy.
Additionally, the machine is equipped with PLC intelligent control, servo motor drive systems, adjustable suction feeding ports, and intelligent wire feeding technology. As a result, manufacturers can achieve stable high-speed operation, accurate carton forming, and consistent box finishing quality during continuous corrugated packaging production.
The integrated gluing and stitching system makes the machine suitable for producing high-strength corrugated cartons used in logistics, industrial packaging, e-commerce, food packaging, FMCG, agricultural packaging, and export carton production. Furthermore, the machine supports A, B, C, and AB flute corrugated sheets and handles both 3-ply and 5-ply corrugated boards efficiently.
This automatic gluing and stitching machine helps corrugated packaging manufacturers reduce labor costs, improve carton strength, increase production speed, and automate packaging workflows for modern industrial carton production.
Therefore, the BYHD-2600 / 2800 / 3200 High Speed Auto Gluing and Stitching Machine is an ideal solution for businesses requiring strong carton bonding, accurate stitching, and high-volume corrugated box manufacturing.
Key Features
- Fully automatic gluing and stitching integrated system
- High-speed carton forming with stable performance
- PLC and Human-Machine Interface control system
- Servo motor-driven operation for stable production
- Intelligent automatic wire feeding system
- Six adjustable suction feeding ports for accurate feeding
- Secondary creasing system for precise folding accuracy
- Small-arm sorting system for quick order changes
- High-speed stitching capability up to 1050 nails/min
- Adjustable nail pitch range from 40–500 mm
- Supports A, B, C, and AB flute corrugated sheets
- Suitable for 3-ply and 5-ply corrugated boards
- Strong stitching and bonding quality for heavy-duty cartons
- Heavy-duty industrial structure for continuous production
- Improves carton strength and production speed
- Reduces manual labor and production downtime
- Suitable for corrugated packaging and export carton production
Technical Specifications
BYHD-2600
- Total Power: ≤ 23 KW
- Speed Control: Inverter-controlled variable speed system
- Applicable Paper Range: A, B, C, AB flute corrugated sheet
- Suitable Board Type: 3-ply and 5-ply corrugated sheet
- Machine Net Weight: Approximately 10 T
- Machine Dimensions: 17000 × 4200 mm
- Nail Distance Range: 40–500 mm
- Nail Angle: 45°
- Air Source Standard: 0.6–0.8 MPa
- Power Supply: 380V ±10%, 50Hz, 3-phase 5-wire
- Maximum Stitching Speed: 1050 nails/min
- Number of Nails: 1–99 nails
- Wire Specification: Standard 17# and 18# stitching wire
BYHD-2800
- Maximum Carton Size Support: 2800 mm
- Suitable for large corrugated carton production
- Supports heavy-duty industrial packaging cartons
- Compatible with automatic gluing and stitching workflow
BYHD-3200
- Maximum Carton Size Support: 3200 mm
- Designed for extra-large corrugated carton applications
- Suitable for industrial and export packaging cartons
- Heavy-duty automatic folding, gluing, and stitching system
Additionally, the machine is equipped with intelligent wire feeding, servo drive technology, and stable folding systems to ensure accurate carton forming and reliable stitching performance.
Applications
The BYHD-2600 / 2800 / 3200 High Speed Auto Gluing and Stitching Machine is widely used in:
- Corrugated carton manufacturing
- Heavy-duty industrial packaging
- E-commerce shipping carton production
- Food and beverage carton packaging
- Agricultural product packaging
- Logistics and warehouse cartons
- Export packaging cartons
- FMCG corrugated box production
- Appliance and electronics packaging
- Large-format corrugated carton manufacturing
- Industrial shipping box production
- High-volume corrugated packaging operations
Furthermore, modern gluing and stitching machines are commonly used in corrugated packaging industries to improve carton durability, reduce labor dependency, and increase production efficiency.
Model Comparison
| Specification | BYHD-2600 | BYHD-2800 | BYHD-3200 | BYDX-2600 |
|---|---|---|---|---|
| Machine Type | Auto Gluing/Stitching Machine | Auto Gluing/Stitching Machine | Auto Gluing/Stitching Machine | Auto Gluing/Stitching Machine |
| Maximum Carton Size | 2600 mm | 2800 mm | 3200 mm | 2600 mm |
| Applicable Paper | A/B/C/AB flute corrugated board | A/B/C/AB flute corrugated board | A/B/C/AB flute corrugated board | A/B/C/AB flute corrugated board |
| Board Type | 3-ply & 5-ply | 3-ply & 5-ply | 3-ply & 5-ply | 3-ply & 5-ply |
| Total Power | ≤ 23 KW | ≤ 23 KW | ≤ 23 KW | ≤ 23 KW |
| Machine Weight | Approx. 10 T | Approx. 10 T | Approx. 10 T | Approx. 12 T |
| Machine Dimensions | 17000 × 4200 mm | 17000 × 4200 mm | 17000 × 4200 mm | 19000 × 4200 mm |
| Maximum Stitching Speed | 1050 nails/min | 1050 nails/min | 1050 nails/min | 1050 nails/min |
| Nail Distance Range | 40–500 mm | 40–500 mm | 40–500 mm | 40–500 mm |
| Main Function | Folding + Gluing + Stitching | Large carton production | Extra-large carton production | Heavy-duty integrated production |
| Ideal Usage | Medium corrugated cartons | Large corrugated cartons | Industrial export cartons | High-capacity carton production |
Why Choose the High Speed Auto Gluing Stitching Machine?
The BYHD-2600 / 2800 / 3200 series provides an efficient and reliable solution for automatic carton folding, gluing, and stitching operations. Moreover, the machine combines intelligent automation, servo drive performance, accurate feeding systems, and strong stitching technology to ensure stable production and durable carton quality.
Additionally, the machine helps manufacturers improve carton strength, reduce manual labor, increase production speed, and achieve consistent corrugated box finishing. Therefore, it is an ideal industrial packaging solution for corrugated carton manufacturers, logistics packaging suppliers, e-commerce carton producers, and export packaging industries.
For advanced corrugated packaging machinery and industrial automation solutions, visit Corrumatik.
Frequently Asked Questions
What is the High Speed Auto Gluing Stitching Machine used for?
The machine is used for automatic corrugated carton folding, gluing, stitching, and heavy-duty carton production applications.
Which corrugated boards are supported?
The machine supports A, B, C, and AB flute corrugated sheets, including 3-ply and 5-ply corrugated boards.
Which industries use this machine?
It is widely used in corrugated packaging, logistics packaging, e-commerce carton production, FMCG packaging, food packaging, agricultural packaging, and export carton manufacturing.
What are the advantages of an auto gluing and stitching machine?
Auto gluing and stitching machines improve carton strength, increase production speed, reduce labor costs, and deliver consistent high-quality corrugated carton finishing.
